Mobile generator sets

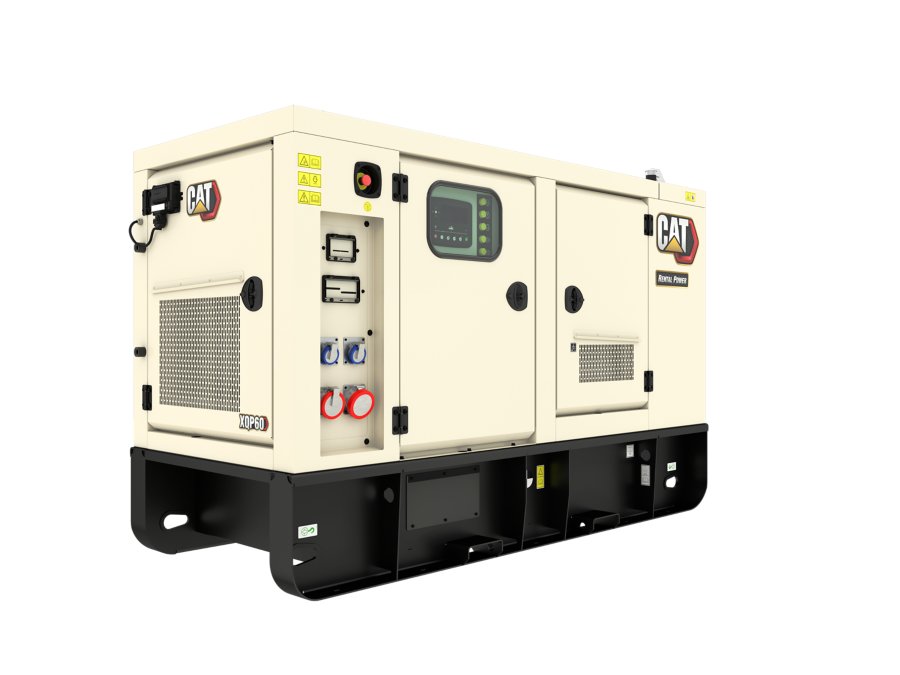

XQP60 EU Stage V
This XQP60 generator set meets the EU Stage V emission standard. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
| Rating Prime | 60 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 220 - 480 V |
| Engine | Cat C3.6 |
|---|---|
| Fuel | Diesel |
| Width | 45.0 in |
|---|---|
| Height | 69.9 in |
| Length | 104.2 in |
| Weight - With Lube Oil and Coolant | 3918 lb |
| 100% Load 50Hz | 3.77 gal/hr |
|---|---|
| 100% Load 60Hz | 3.46 gal/hr |
| 75% Load 50Hz | 2.76 gal/hr |
| 75% Load 60Hz | 2.74 gal/hr |
| 50% Load 50Hz | 1.94 gal/hr |
| 50% Load 60Hz | 1.98 gal/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 93 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 97 dB(A) |
Cat C3.6 Diesel Engine
- Turbocharged
Generator
- M1775L4 Frame
Air Filter
- Cartridge-type air filter with service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
