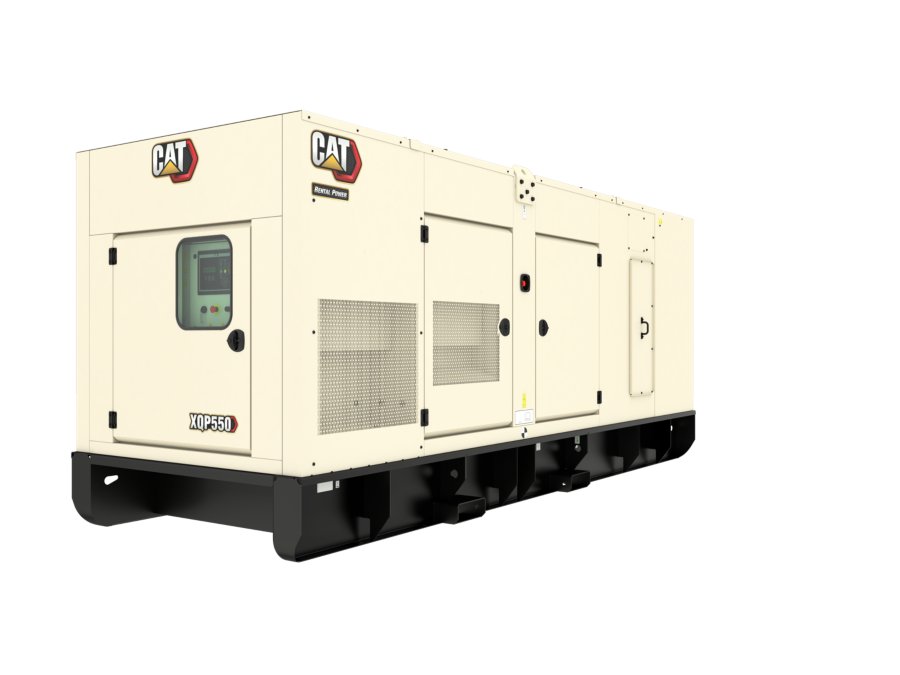

XQP550 EU Stage V
The XQP550 generator set is EU Stage V emission standard capable. A unique feature is the introduction of clutch fan drive technology where the fan no longer needs to run continually at full speed and power. This saves additional fuel, while lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures and, most importantly, in evenings when noise levels are most noticeable.
| Rating Prime | 550 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 220 - 480 V |
| Fuel/Emissions Strategy | EU Stage V |
| Engine | Cat® C18 |
|---|---|
| Fuel | Diesel |
| Width | 80.3 in |
|---|---|
| Height | 90.5 in |
| Length | 213.3 in |
| Weight - With Lube Oil and Coolant | 14860 lb |
| 100% Load 60 Hz | 34.3 gal/hr |
|---|---|
| 100% Load 50 Hz | 33.4 gal/hr |
| 75% Load 60 Hz | 26.13 gal/hr |
| 75% Load 50 Hz | 24.9 gal/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 79.19 |
|---|
Cat C18 Diesel Engine
- Turbocharged, ATAAC
Generator
- LC6114K Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- XQCP set mounted controller.
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
