Mobile generator sets

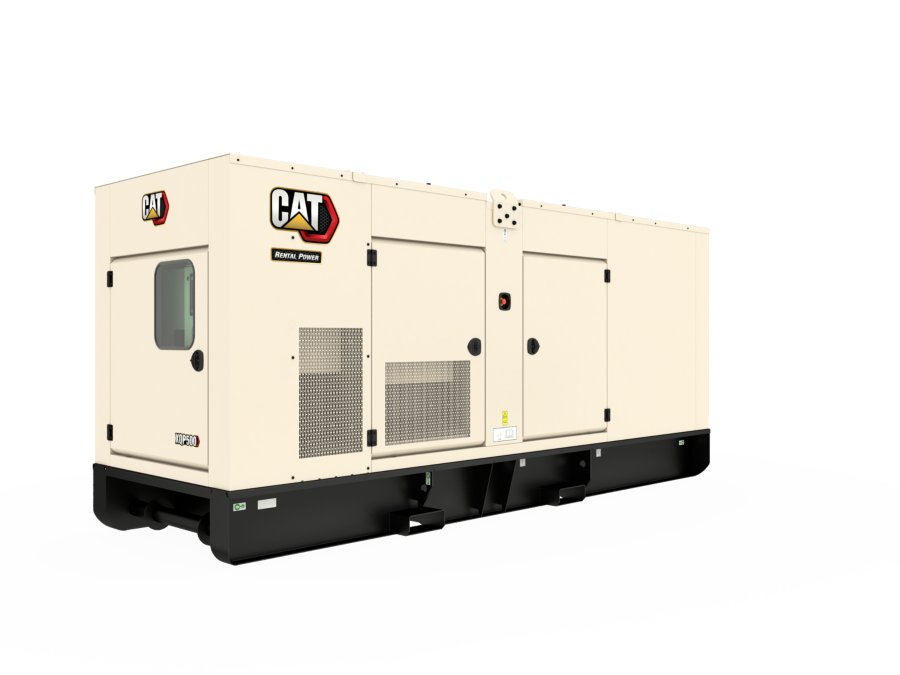

XQP500
This XQP500 generator set is fuel consumption optimized. A unique feature is the introduction of clutch fan drive technology, where the fan no longer needs to runs continuously at full speed and power. This saves additional fuel, while also lowering noise output; an ideal feature when operating at lower loads, in cooler temperatures, or most importantly, in evenings when noise levels are most noticeable.
| Rating Prime | 500 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 127 - 480 V |
| Engine | Cat C15 |
|---|---|
| Fuel | Diesel |
| Width | 77 in |
|---|---|
| Height | 90 in |
| Length | 200.9 in |
| Weight - With Lube Oil and Coolant | 13176 lb |
| 100% Load 50Hz | 29.1 gal/hr |
|---|---|
| 100% Load 60Hz | 32 gal/hr |
| 75% Load 50Hz | 23 gal/hr |
| 75% Load 60Hz | 26.3 gal/hr |
| 50% Load 50Hz | 16.4 gal/hr |
| 50% Load 60Hz | 18.3 gal/hr |
| 100% Load 50Hz | 29 gal/hr |
|---|---|
| 100% Load 60Hz | 28.3 gal/hr |
| 75% Load 50Hz | 20.1 gal/hr |
| 75% Load 60Hz | 22 gal/hr |
| 50% Load 50Hz | 14.3 gal/hr |
| 50% Load 60Hz | 15.7 gal/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 77.5 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 79.8 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 80.1 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 80 dB(A) |
CAT C15 Diesel Engine
- Turbocharged
Generator
- LC6114F Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital EMCP4.2B set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQP500 Rental Generator Set Spec sheet (EU Stage IIIA)
-
Download ↓XQP500 Rental Generator Set Spec sheet (Low Fuel Consumption)
-
Download ↓Your Partner for Rental and Construction
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
