Mobile generator sets

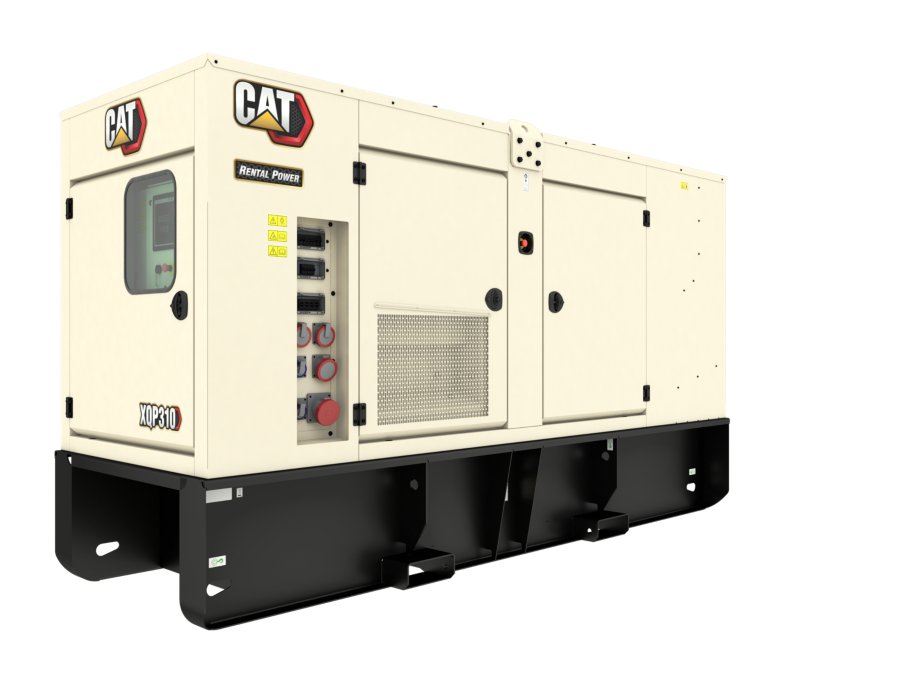

XQP310 EU Stage V
This XQP310 generator set is EU Stage V emission standard capable. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
| Rating Prime | 310 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 220 - 480 V |
| Fuel/Emissions Strategy | EU Stage V |
| Engine | Cat C9.3 |
|---|---|
| Fuel | Diesel |
| Width | 60 in |
|---|---|
| Height | 90 in |
| Length | 161 in |
| Weight - With Lube Oil and Coolant | 9046 lb |
| 100% Load 50 Hz | 17.7 gal/hr |
|---|---|
| 100% Load 60 Hz | 20.4 gal/hr |
| 75% Load 50 Hz | 13.2 gal/hr |
| 75% Load 60 Hz | 14.9 gal/hr |
Cat® C9.3B Diesel Engine
- Twin Turbocharged, air-to-air aftercooler
- Electronic ECM controlled
After Treatment
- Engine Mounted Clean Emissions Module (CEM)
- Diesel Emissions Fluid (DEF)
Alternator
- LC5114N Frame
- Coastal insulation protection
Control Panel
- XQCP set mounted digital controller
Air Filter
- High efficiency two stage air cleaner, with dust cup andservice indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
- High ambient performance
Charging / Starting System
- 24V heavy duty charging alternator with integral regulator
Fuel System
- 12hour dual wall fuel tank with internal fuel fill
- Engine mounted primary and secondary fuel filter
Distribution
- Separate robust steel enclosures for control & distribution sections
- 4 pole, 630A main circuit breaker
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
- Sealed quarter-turn compression latches with key orpadlock capabilities
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
- Full manufacturer's warranty
-
Download ↓XQP310 Rental Generator Set Spec sheet (EU Stage V)
-
Download ↓Your Partner for Rental and Construction
-
Download ↓Cat Gensets Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
