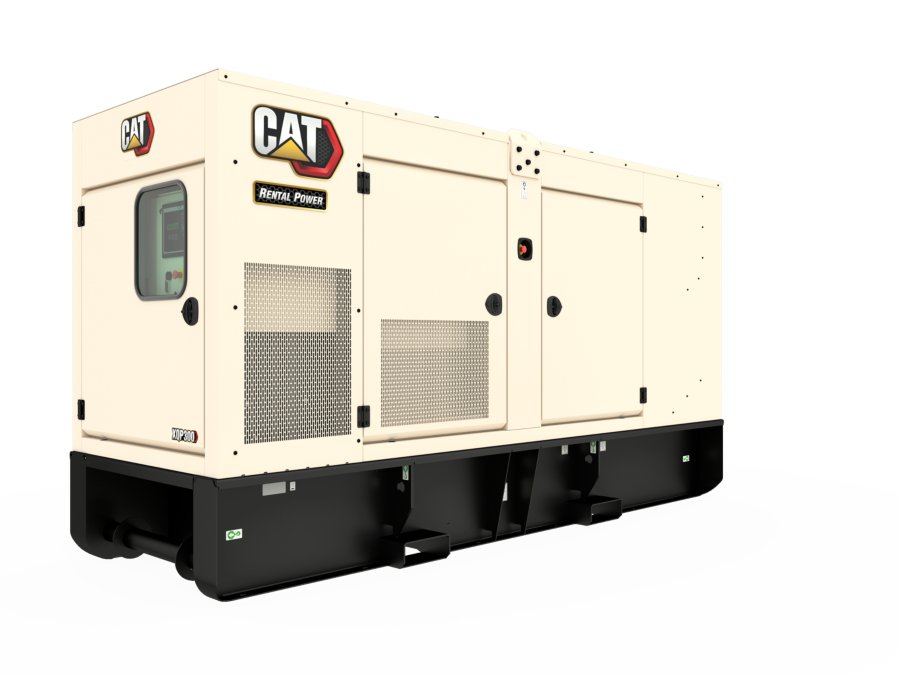

Mobile generator sets
XQP300
This fuel-optimized rental power product is ideal for customers interested in consuming the least amount of fuel. Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
| Rating Prime | 300 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 127 - 480 V |
| Engine | Cat C9 |
|---|---|
| Fuel | Diesel |
| Width | 55 in |
|---|---|
| Height | 84 in |
| Length | 160 in |
| Weight - With Lube Oil and Coolant | 8553 lb |
| 100% Load 50Hz | 16.5 gal/hr |
|---|---|
| 100% Load 60Hz | 19.4 gal/hr |
| 75% Load 50Hz | 12.5 gal/hr |
| 75% Load 60Hz | 14.7 gal/hr |
| 50% Load 50Hz | 8.9 gal/hr |
| 50% Load 60Hz | 10.6 gal/hr |
CAT C9 Diesel Engine
- Turbocharged
Generator
- LC5114N Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital EMCP4.2B set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQP300 Rental Generator Set Spec sheet
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
