Mobile generator sets

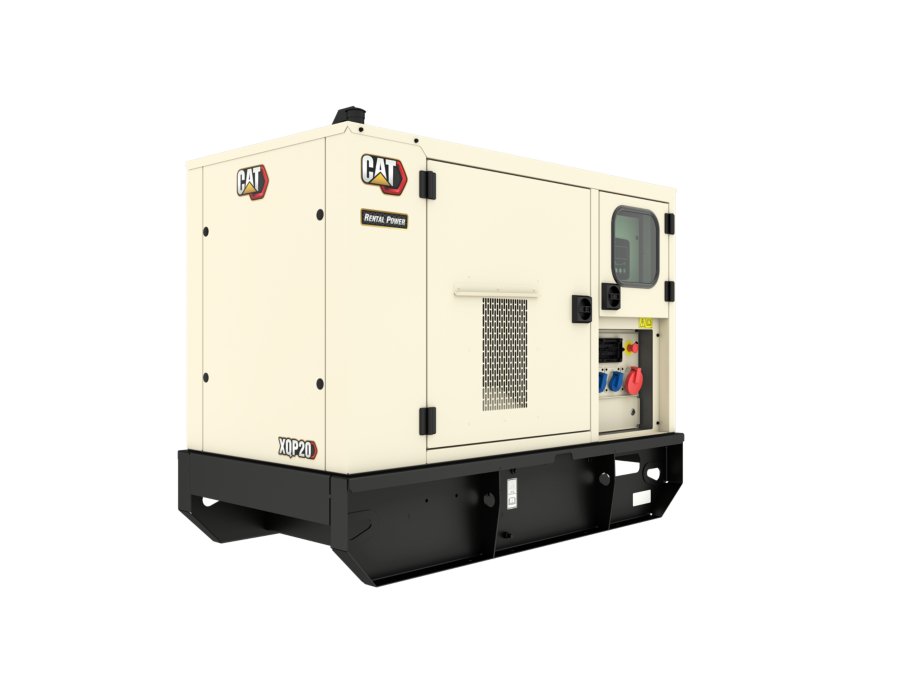

XQP20 EU Stage V

This XQP20 generator set is EU Stage V emission standard capable. It can handle varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.

Have questions about this product?
Request a Quote
800.768.4200
Generator Set
Rating Prime 20 kVA
Frequency 50 Hz
Voltage 220 - 415 V
Fuel/Emissions Strategy EU Stage V
Engine
Engine Cat® C2.2
Fuel Diesel
Emissions EU Stage V
Dimensions
Width 39.1 in
Height 50.1 in
Length 67.1 in
Weight - With Lube Oil and Coolant 1793 lb
Fuel Consumption
100% Load 50 Hz 1.45 gal/hr
75% Load 50 Hz 1.05 gal/hr
Noise rating (with enclosure)
Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) 65 dB(A)

Cat® C2.2 Diesel Engine

  • Naturally aspirated
  • Mechanical Governor

Alternator

  • LC1100 Frame
  • Coastal insulation protection

Control Panel

  • GCCP 1.3 set mounted digital controller

Air Filter

  • Air cleaner, cyclonic/paper with dust cup and serviceindicator

Cat Connect remote monitoring

  • Provides package monitoring and management

Cooling System

  • Package mounted radiator with vertical air discharge. Filled from factory
  • High ambient performance

Charging / Starting System

  • 12V, heavy duty charging alternator with integral regulator and belt guards

Fuel System

  • 12 hour dual wall fuel tank with internal fuel fill
  • Engine mounted primary and secondary fuel filter

Distribution

  • Separate robust steel enclosures for control & distribution sections
  • 4 pole, 40A main circuit breaker

Enclosure

  • Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
  • Sealed quarter-turn compression latches with key or padlock capabilities

Lube Oil

  • On engine primary and secondary oil filters. Filled from factory

General

  • Factory tested and inspected
  • Full manufacturer's warranty
  • XQP20 Rental Generator Set Spec sheet (EU Stage V)
    application/pdf
    Download ↓
  • Your Partner for Rental and Construction
    application/pdf
    Download ↓
  • Cat Gensets Rating Guide
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
