Mobile generator sets

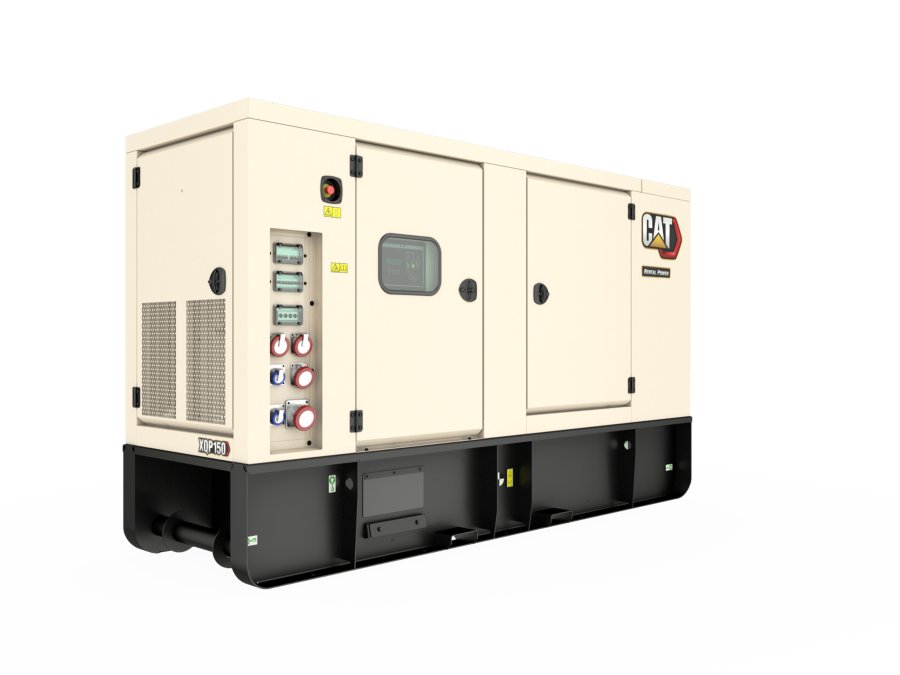

XQP150
This XQP150 generator set is fuel consumption optimized . Each model delivers increased flexibility by easily switching between 50 and 60 Hz, which allows one machine to satisfy varying load requirements across diverse regions and applications including mining, manufacturing, oil and gas and construction.
| Rating Prime | 150 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 127 - 480 V |
| Engine | Cat C7.1 |
|---|---|
| Fuel | Diesel |
| Width | 44.1 in |
|---|---|
| Height | 87.6 in |
| Length | 138.6 in |
| Weight - With Lube Oil and Coolant | 5615 lb |
| 100% Load 50Hz | 9.9 gal/hr |
|---|---|
| 100% Load 60Hz | 11.2 gal/hr |
| 75% Load 50Hz | 7.8 gal/hr |
| 75% Load 60Hz | 9.2 gal/hr |
| 50% Load 50Hz | 5.4 gal/hr |
| 50% Load 60Hz | 6.3 gal/hr |
| 100% Load 50Hz | 8.8 gal/hr |
|---|---|
| 100% Load 60Hz | 10.5 gal/hr |
| 75% Load 50Hz | 6.5 gal/hr |
| 75% Load 60Hz | 7.7 gal/hr |
| 50% Load 50Hz | 4.3 gal/hr |
| 50% Load 60Hz | 5 gal/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 73.1 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 76.4 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 74.7 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 78.3 dB(A) |
CAT C7.1 Diesel Engine
- Turbocharged
Generator
- LC3114J Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQP150 Rental Generator Set Spec sheet (EU Stage IIIA)
-
Download ↓XQP150 Rental Generator Set Spec sheet (Low Fuel Consumption)
-
Download ↓Your Partner for Rental and Construction
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
