Mobile generator sets

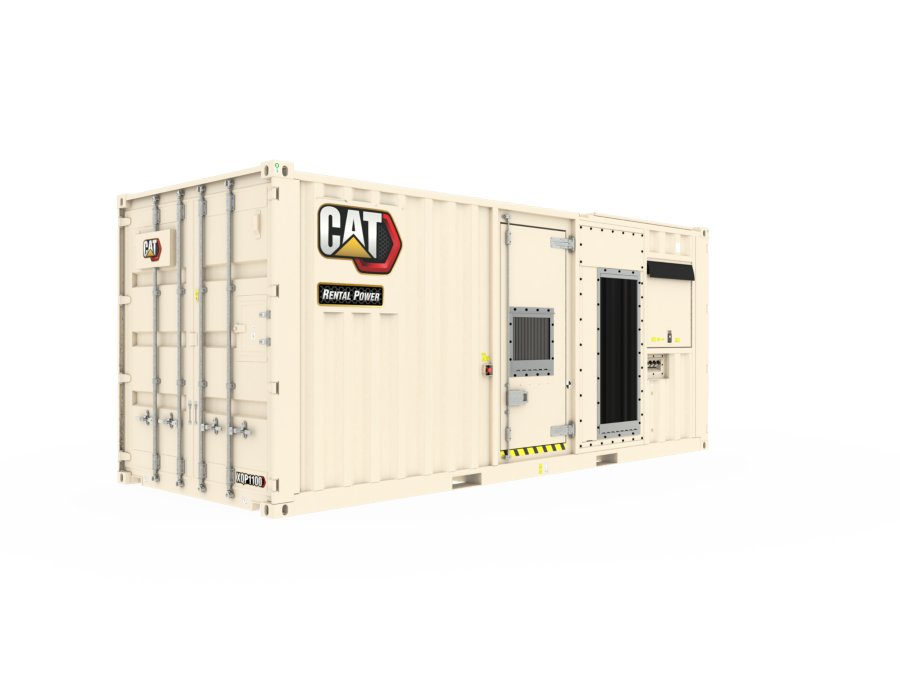

XQP1100
Packaging 1100 kVA in a 20’ ISO transportable container, the power density offering in the XQP1100 is increased and paralleling controls with an Electrically Operated (EO) breaker are featured as standard equipment. The XQP1100 is a fully self-contained unit capable of running eight hours without refueling.
| Rating Prime | 1100 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 127 - 480 V |
| Engine | Cat C32 |
|---|---|
| Fuel | Diesel |
| Width | 96 in |
|---|---|
| Height | 102 in |
| Length | 240 in |
| Weight - With Lube Oil and Coolant | 32053 lb |
| 100% Load 50Hz | 57.6 gal/hr |
|---|---|
| 100% Load 60Hz | 67 gal/hr |
| 75% Load 50Hz | 43.2 gal/hr |
| 75% Load 60Hz | 50 gal/hr |
| 50% Load 50Hz | 30.6 gal/hr |
| 50% Load 60Hz | 133.6 l/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 84 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 85 dB(A) |
CAT C32 Diesel Engine
- Turbocharged
Generator
- E3875L4 Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 24V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- Fuel tank with 6 way directional valve for external supply
Control Panel
- Digital EMCP4.4 set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQP1100 Rental Generator Set
-
Download ↓Cat Gensets Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
