Mobile generator sets

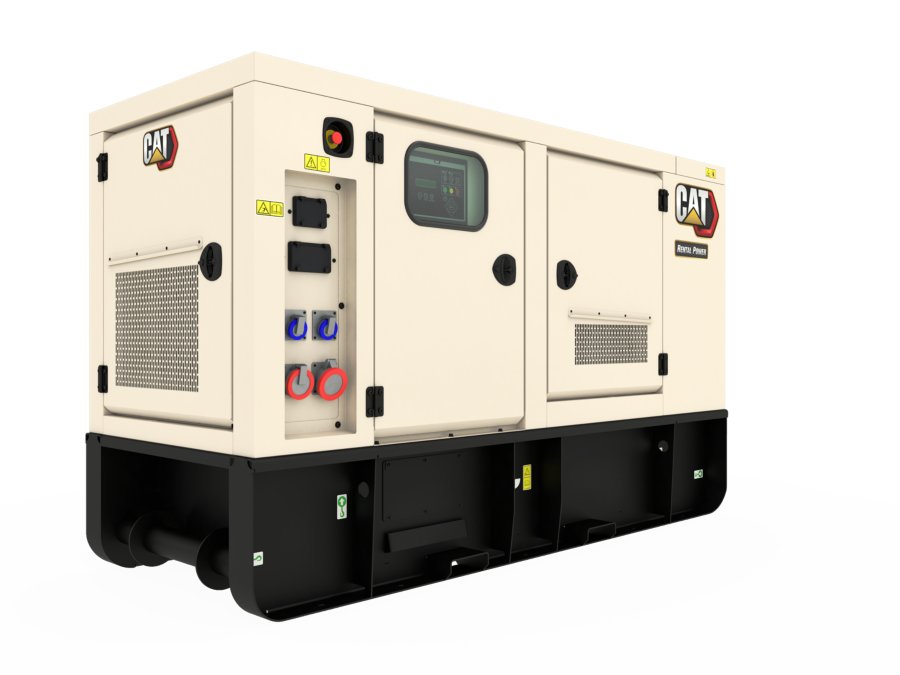

XQP100
This XQP100 generator set provide low fuel consumption performance. With a robust, rental or mobile-ready construction, the product line is designed to be easily transported around project sites safely and efficiently. Heavy-duty bases with integrated fork lift pockets allow the unit to be dragged and lifted with ease, while Clipsal or CEE socket options are available on select models to reduce installation time and provide trouble-free power distribution.
| Rating Prime | 100 kVA |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 127 - 480 V |
| Engine | Cat C4.4 |
|---|---|
| Fuel | Diesel |
| Width | 44.1 in |
|---|---|
| Height | 72.7 in |
| Length | 109.1 in |
| Weight - With Lube Oil and Coolant | 4469 lb |
| 100% Load 50Hz | 6.2 gal/hr |
|---|---|
| 100% Load 60Hz | 7.3 gal/hr |
| 75% Load 50Hz | 5.4 gal/hr |
| 75% Load 60Hz | 5.9 gal/hr |
| 50% Load 50Hz | 3.9 gal/hr |
| 50% Load 60Hz | 4.2 gal/hr |
| 100% Load 50Hz | 6 gal/hr |
|---|---|
| 100% Load 60Hz | 7.1 gal/hr |
| 75% Load 50Hz | 4.5 gal/hr |
| 75% Load 60Hz | 5.3 gal/hr |
| 50% Load 50Hz | 3.1 gal/hr |
| 50% Load 60Hz | 3.7 gal/hr |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 77.5 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 79.5 dB(A) |
| Sound Power @ 1 meters (3 feet) @ 75% of rating (50Hz) | 80.3 dB(A) |
|---|---|
| Sound Power @ 1 meters (3 feet) @ 75% of rating (60Hz) | 81.6 dB(A) |
CAT C4.4 Diesel Engine
- Turbocharged
Generator
- LC3114F Frame
Air Filter
- Cyclonic/paper with dust cup and service indicator
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge. Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Control Panel
- Digital XQCP set mounted controller
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank. Fork lift pockets. Dragging bars. Lifting frame and 4 point lift. base frame is wider than enclosure to protect generator set during transportation.
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQP100 Rental Generator Set (EU Stage IIIA Equivalent)
-
Download ↓XQP100 Rental Generator Set (Low Fuel Consumption)
-
Download ↓Your Partner for Rental and Construction
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
