Mobile generator sets

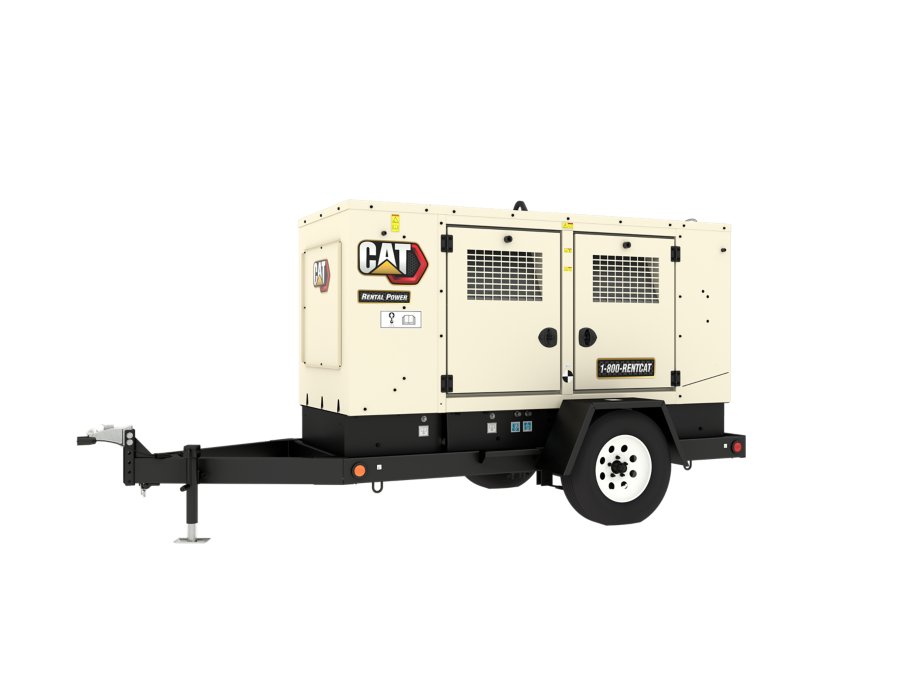

XQ60 Tier 4 Final
With a robust, rental-ready construction, the XQ60 is designed to be easily transported around project sites safely and efficiently. A smaller footprint saves space and provides installation versatility on worksites. The XQ60 is capable of 500-hour oil change intervals, which likewise increases uptime, lowers maintenance costs and consumes fewer parts and oil making it friendlier for the environment.
| Rating Prime | 46 ekW (57.5 kVA) |
|---|---|
| Frequency | 60 Hz |
| Voltage | 120 - 480 V |
| Engine | Cat C3.6 |
|---|---|
| Fuel | Diesel |
| Height - Without Trailer | 65.3 in |
|---|---|
| Length - Without Trailer | 106.5 in |
| Width - Without Trailer | 41.3 in |
| Weight with Lube Oil and Coolant, Without Trailer | 1423 kg |
| 100% Load 60Hz | 3.3 gal/hr |
|---|---|
| 75% Load 60Hz | 2.6 gal/hr |
| 50% Load 60Hz | 1.9 gal/hr |
| Sound Power @ 7 meters (23 feet) @ All Ratings | 67 dB(A) |
|---|
CAT C3.6L Diesel Engine
- Heavy-duty.<br /> After treatment
Generator
- 1514P Frame
Control Panel
- XQCP dgital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.<br /> Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.<br /> Lifting frame and 4 point lift.<br /> base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQ60 Tier 4 Rental Generator Set Spec Sheet
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
