Mobile generator sets

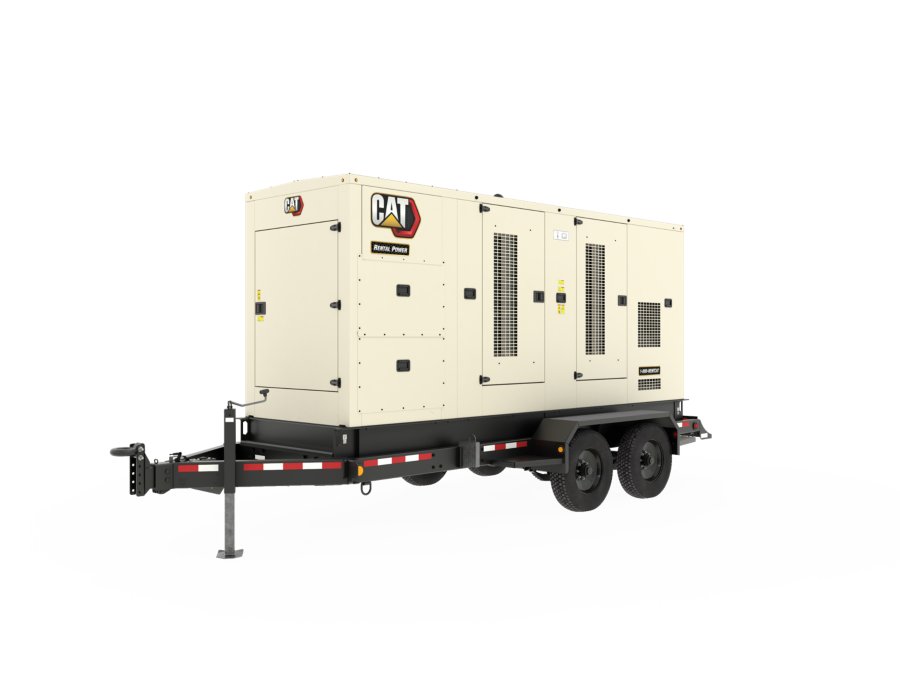

XQ425 Tier 4 Final
The Cat® XQ425 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C13 Tier 4 Final engine compliant equipped with the Cat NOx Reduction System. Equipped with the new EMCP 4.4 control panel, the XQ425 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
| Rating Prime | 340 ekW (425 kVA) |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 120 - 600 V |
| Rating Standby | 375 ekW (469 kVA) |
| Engine | C13 |
|---|---|
| Fuel | Diesel |
| Height - Without Trailer | 60 in |
|---|---|
| Length - Without Trailer | 208.7 in |
| Width - Without Trailer | 104 in |
| Weight with Lube Oil and Coolant, Without Trailer | 14700 lb |
| 100% Load 60Hz | 23.1 gal/hr |
|---|---|
| 75% Load 60Hz | 17.7 gal/hr |
| 50% Load 60Hz | 12.7 gal/hr |
| 100% Load 60Hz | 25.1 gal/hr |
| 75% Load 60Hz | 19.2 gal/hr |
| 50% Load 60Hz | 13.6 gal/hr |
| Sound Power @ 7 meters (23 feet) @ All Ratings | 74 dB(A) |
|---|
CAT C13 Diesel Engine
- Heavy-duty.<br /> Turbocharged.<br /> After treatment
Generator
- LC Frame - LC6134F
Control Panel
- Digital XQCP controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.<br /> Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.<br /> Lifting frame and 4 point lift.<br /> base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
