Mobile generator sets

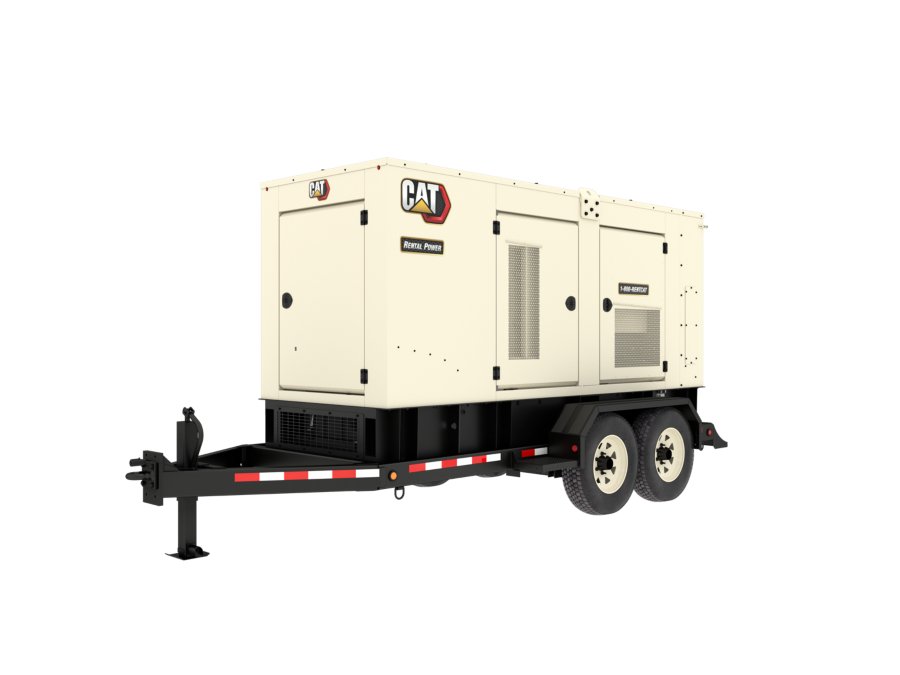

XQ330 Tier 4 Final
The Cat® XQ330 provides world class performance and enhanced usability. This model is powered by the fuel-efficient Cat C9.3 Tier 4 Final compliant engine equipped with the Cat NOx Reduction System. Equipped with the EMCP 4.4 control panel, the XQ330 features a user-friendly interface and automatic generator set paralleling. A principle advantage of the control system offers simpler and faster voltage changes. Providing greater flexibility when moving between multiple job sites with differing frequency and voltage needs, the auto-configuration capability eliminates the time required when reprogramming units and potential errors. Additional features include lower noise levels and improved part load fuel consumption.
| Rating Prime | 264 eKW (330 kVA) |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 120 - 600 V |
| Rating Standby | 288 ekW (360 kVA) |
| Engine | C9.3B |
|---|---|
| Fuel | Diesel |
| Height - Without Trailer | 78.5 in |
|---|---|
| Length - Without Trailer | 162.2 in |
| Width - Without Trailer | 92.8 in |
| Weight with Lube Oil and Coolant, Without Trailer | 10405 lb |
| 100% Load 60 Hz | 18.5 gal/hr |
|---|---|
| 75% Load 60 Hz | 13.7 gal/hr |
| 50% Load 60Hz | 9.8 gal/hr |
| 100% Load 50 Hz | 16.5 gal/hr |
| 75% Load 50 Hz | 12.5 gal/hr |
| Sound Power @ 7 meters (23 feet) @ Prime Rating | 70.2 dB(A) (60Hz) |
|---|
CAT C9.3B Diesel Engine
- Heavy-duty.<br /> Turbocharged.<br /> After treatment
Generator
- LC5134N Frame
Control Panel
- Digital EMCP4.4 set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.<br /> Filled from factory
Charging / Starting System
- Single 24V electric starting motor
Fuel System
- 24 hour dual wall fuel tank
Air Filter
- Efficient air cleaner with service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 3 pole 1000A maim circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.<br /> Dual Point Lifting frame and 4 point lift.<br /> base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory 500-hour oil change interval
General
- Factory tested and inspected
-
