Mobile generator sets

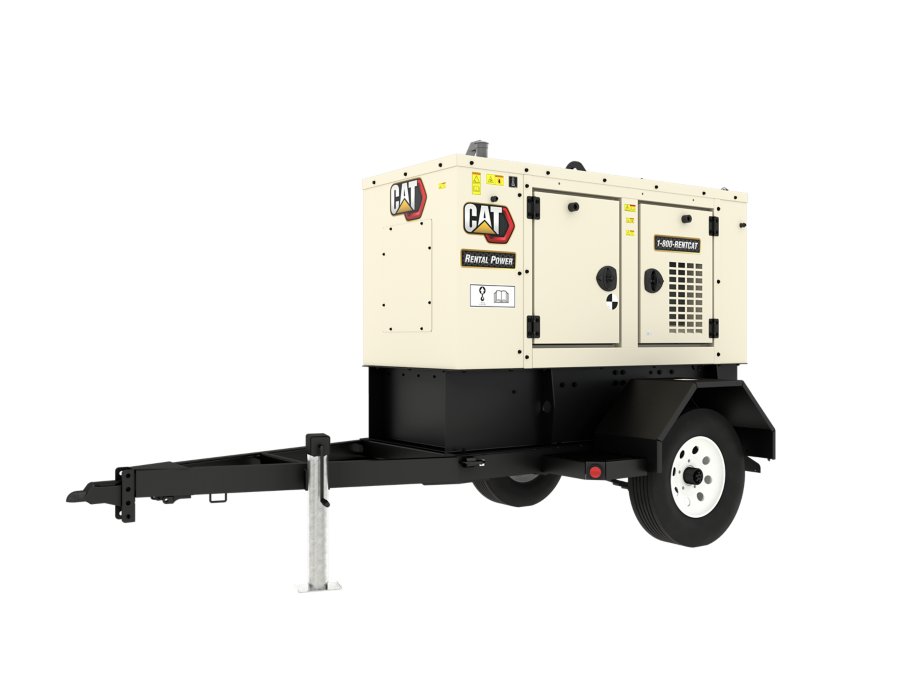

XQ20 Tier 4 Final
Whether or not the outage was expected, Cat® Rental Power is here to keep your operation running.
| Rating Prime | 16 ekW (20 kVA) |
|---|---|
| Frequency | 60 Hz |
| Voltage | 208 - 480 V |
| Engine | C1.5T |
|---|---|
| Fuel | Diesel |
| Width | 65 in |
|---|---|
| Height | 74 in |
| Length | 128 in |
| Weight | 2685 lb |
| Sound Power @ 7 meters (23 feet) @ All Ratings | 61 dB(A) |
|---|
CAT C1.5T Diesel Engine
- Heavy-duty.<br />
Generator
- 1514B Frame
Control Panel
- GCCP 1.3 Digital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.<br /> Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 3 pole circuit breaker and safety cut off
Structure
- Polymeric Fuel Tank Design with Metal Secondary Wall.<br /> Lifting frame and 4 point lift.<br /> base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine oil filter. Filled from factory
General
- Factory tested and inspected
-
Download ↓XQ20 Rental Generator Set Spec Sheet
-
Download ↓Cat Gensets Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
