Mobile generator sets

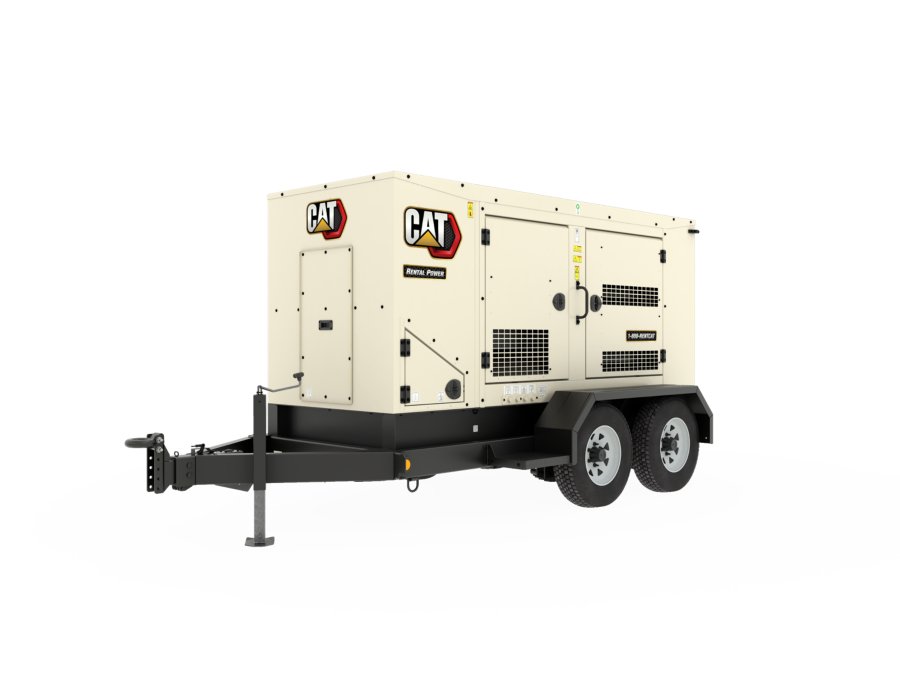

XQ125 Tier 4 Final
The Cat XQ125 is powered by a C 4.4 Tier 4 Final compliant industrial diesel engine offering the perfect balance of durability, efficiency and low emissions. With advanced research and development techniques, the after treatment system is precisely matched to the engine ensuring performance is optimized for maximum productivity.
| Rating Prime | 100 ekW (125 kVA) |
|---|---|
| Frequency | 60 Hz |
| Voltage | 120 - 600 V |
| Engine | Cat C4.4 |
|---|---|
| Fuel | Diesel |
| Height - Without Trailer | 73 in |
|---|---|
| Length - Without Trailer | 127 in |
| Width - Without Trailer | 49 in |
| Weight with Lube Oil and Coolant, Without Trailer | 5230 lb |
| 100% Load 60Hz | 7.5 gal/hr |
|---|---|
| 75% Load 60Hz | 5.51 gal/hr |
| 50% Load 60Hz | 3.8 gal/hr |
| 100% Load 60Hz | 8.3 gal/hr |
| Sound Power @ 7 meters (23 feet) @ Prime Rating | 65 dB(A) |
|---|
CAT C4.4 Diesel Engine
- Heavy-duty.<br /> Turbocharged.<br /> After treatment
Generator
- LC3114F Frame
Control Panel
- XQCP dgital set mounted controller
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Package mounted radiator with vertical air discharge.<br /> Filled from factory
Charging / Starting System
- 12V heavy duty starting motor and charging alternator c/w battery isolator
Fuel System
- 24 hour dual wall fuel tank with 3 way directional valve for external supply
Air Filter
- Cyclonic/paper with dust cup and service indicator
Distribution
- Single, robust enclosure for controls and distribution c/w 4 pole circuit breaker and safety cut off
Structure
- Heavy Duty steel base frame with integral fuel tank.<br /> Lifting frame and 4 point lift.<br /> base frame is wider than enclosure to protect generator set during transportation
Enclosure
- Sound attenuating, galvanised steel enclosure with exceptional noise reduction performance
Exhaust
- Integrated spark arresting silencer
Lube Oil
- On engine primary and secondary oil filters. Filled from factory
General
- Factory tested and inspected
-
