Mobile generator sets

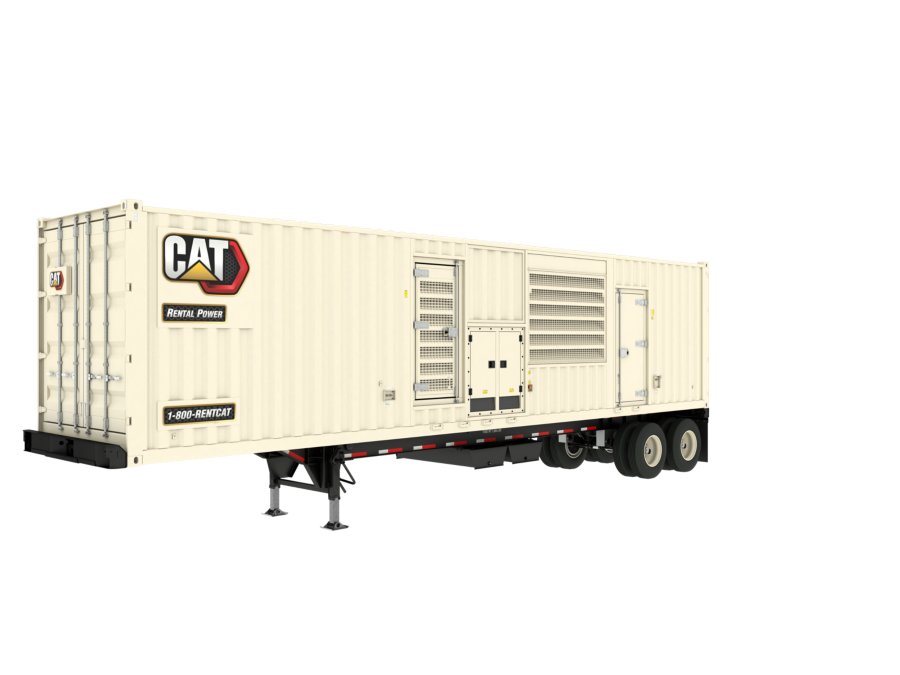

XQ1140 Tier 4 Final
The XQ1140 offers multiple modes of operation to meet your unique needs – even as they change. By incorporating two C18, EPA Tier 4 Final compliant diesel generator sets, this package can provide power output from the generator sets in parallel, N+1 power or independent power from each generator set. That versatility minimizes your operating costs always with the XQ1140 reliability and durability.
| Rating Prime | 910 ekW (1136 kVA) |
|---|---|
| Frequency | 60 Hz |
| Voltage | 120 - 600V |
| Rating Standby | 1000 ekW (1250 kVA) |
| Engine | Cat C18 |
|---|---|
| Fuel | Diesel |
| Height - Without Trailer | 114 in |
|---|---|
| Length - Without Trailer | 480 in |
| Width - Without Trailer | 96 in |
| Weight with Lube Oil and Coolant, Without Trailer | 50107 lb |
| 100% Load 60Hz | 66.4 gal/hr |
|---|---|
| 75% Load 60Hz | 52.4 gal/hr |
| 50% Load 60Hz | 38 gal/hr |
| 100% Load 60Hz | 71.8 gal/hr |
| 75% Load 60Hz | 56.6 gal/hr |
| 50% Load 60Hz | 41 gal/hr |
| Sound Power @ 7 meters (23 feet) @ All Ratings | 76 dB(A) |
|---|
Cat C18 Diesel Engines
- Two Cat C18 Diesel Engines
- Reliable, rugged, durable design
- EPA Tier 4 Final and CARB Emissions Certified
- Turbocharged Aftercooled
- Aftertreatment module. </br> DEF System</br>
Alternator and Alternator attachments
- 3 Phase, brushless, 12 lead, Permanent Magnet Excited
- LC6134G Frame
- Anti-condensation space heaters
- Integrated voltage regulator (IVR) with VAR/PF control
- Sized for 105°C temperature rise at 40°C ambient
Control Panels
- Dual EMCP 4.4 genset mounted digital controllers
- Externally accessible Color Touch-Screen HMI Control Center
- Manual and automatic paralleling capability
Governing system
- Electrical governing system ADEM™ A4
Cat Connect remote monitoring
- Provides package monitoring and management
Cooling System
- Vertically mounted radiator with vertical airdischarge from the container
- Provides 47°C ambient capability at Prime rating
Charging / Starting System
- UL Listed and CSA Certified 240V, 20 Amp battery charger
- Charging alternator; 24V-80A, heavy duty withintegral regulator and belt guards
- Solar maintainer for batteries
- Single electric starting motor, 24V per engine
Fuel System
- 630-gal (2385 L) double-wall fuel tank, UL 142and ULC 601 Listed and complies with Transport Canada requirements, internal and external fuel fill
- Fuel tanks connected by fuel transfer system withfilter to allow both engines access to all fuel on-board
- Primary and secondary fuel filters
- Fuel cooler
Air inlet system
- Heavy-duty air element, canister type
Distribution
- Externally accessible, Vibration Isolated, 3600A Frame, 1000 Ka, IC, 3-pole electrically operated breaker with lock out tag out provision
- Busbar connections
- Dual customer connections
Sound Attenuated Container
- 40' ISO high cube container
- Sound level is 76 dB(A) at 7 meters per SAEJ1074 measured at 75% prime load
- Sound attenuated air intake louvers and fivelockable personnel doors with panic release
Lube System
- Pump, integral oil cooler, lube oil, filter, filler and dipstick, and oil sampling valve
- Oil drain line with internal brass ball valve routedto connection point accessible from exterior
General
- Factory tested and inspected
- Full manufacturer's warranty
- UL, NEMA, ISO, and IEEE standards
-
Download ↓XQ1140 Rental Genset Spec Sheet
-
Download ↓Cat Gensets Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
