Mobile generator sets

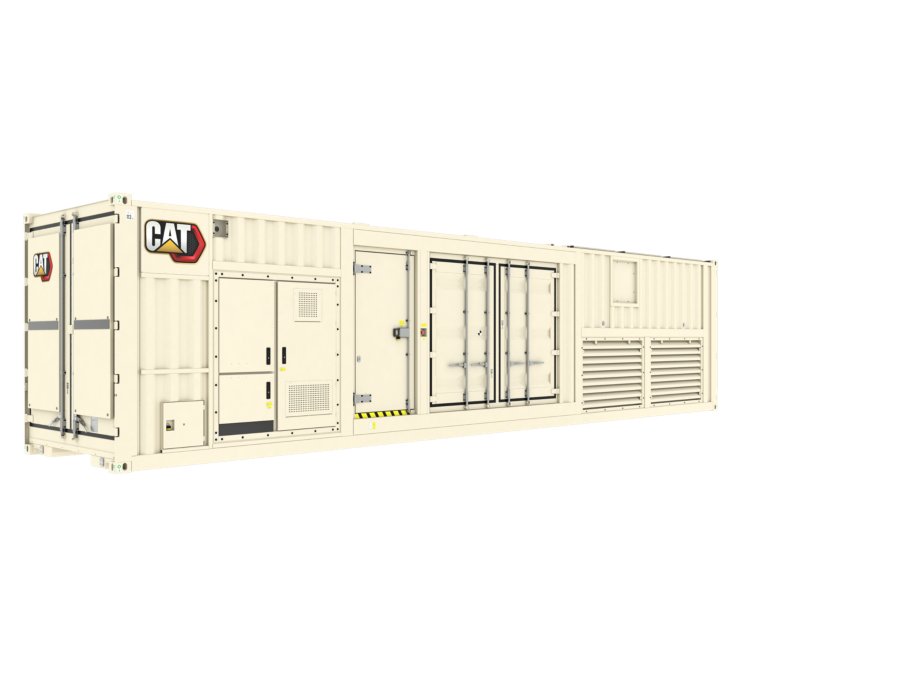

XGC1900 50/60Hz
In addition to improved fuel efficiency, the next generation XGC1900 rental generator provides significant power density advantages. Caterpillar developed new exhaust stacks that reduce spacing requirements for sites requiring multiple units.
| Rating | 1900 ekW (2375 kVA) Continuous |
|---|---|
| Frequency | 50/60 Hz |
| Voltage | 400/480 V |
| Engine | Cat G3516H |
|---|---|
| Fuel | Natural Gas |
| Width - Without Chassis | 96 in |
|---|---|
| Height - Without Chassis | 114 in |
| Length - Without Chassis | 480 in |
| Weight - Without Chassis, With Lube Oil and Coolant | 77780 lb |
Engine
- G3516H, V16, 4-stroke-cycle, gas engine. Operates on 24.10 to 93.95 MJ/Nm3 (615 to 2386 btu/ft3) dry pipeline natural gas. Turbocharged Separate Circuit Aftercooled
Generator
- Double bearing SR5 1866 Frame, brushless, form wound, 12-lead design, permanent magnet excited, thouree-phase, with Cat IVR, Class H insulation operating at Class F temperature. Stator and Bearing temperature monitoring and anti-condensation space heaters
Containerized Module
- 40' ISO high cube container, 9-high stack CSC certified. Sound attenuated 79 dB(A) @ 7 m (23 ft) Sound attenuated air intake louvers and 2lockable personnel doors with panic release LH and RH engine service doors integrated intocontainer side walls 3” ANSI flange customer fuel connection
Cooling
- Standard cooling provides 40⁰C (104⁰F) ambient capability with 500mg/Nm3 NOx at 100% Continuous rating before derate, @ 500m
Generator Controls And Protection
- On Package EMCP 4.3 Control Panel System Offers engine and generator monitoring and protection, voltage regulation with Cat IVRimproves transient response performance. Controls provide auto paralleling AGC-4 controller, load sharing, VFD control, and primary generator protection for greater versatility, package utilization and monitoring.
Modes of Operation
- Provides for single unit stand-alone operation,island mode paralleling and load sharing withother power modules, and single unit-to-utilitymode paralleling for base load control
Lube Oil Make-Up System
- Oil pan-mounted oil level regulator and 114 L (30 gal) oil tank Low level annunciation
-
Download ↓XGC1900 50 Hz Spec Sheet
-
Download ↓Cat Gensets Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
