Battery energy storage

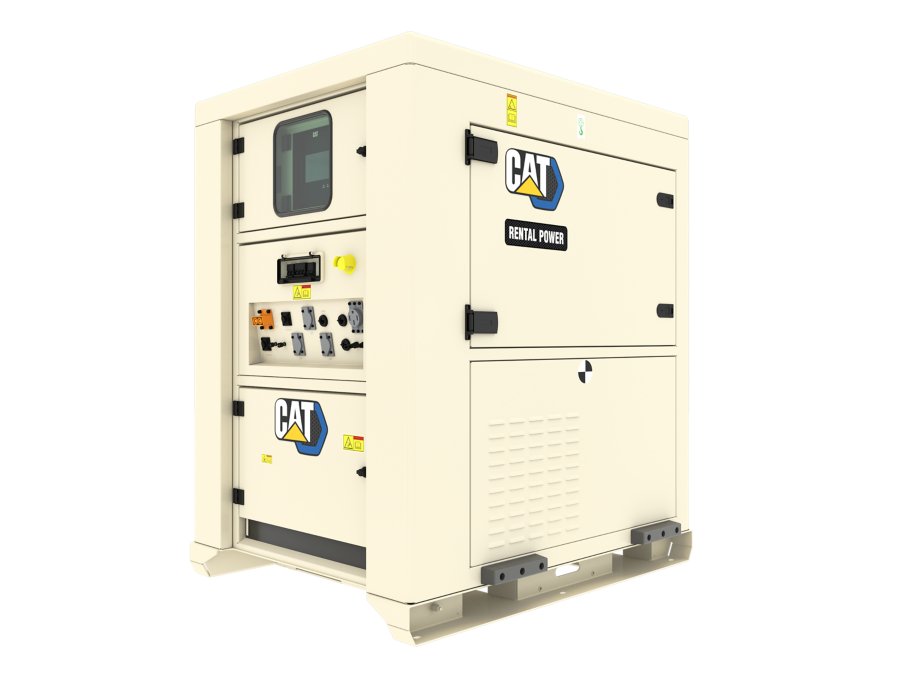

XES60 (60 Hz)

Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.

Have questions about this product?
Request a Quote
Technical Summary
Nominal Power 24 kW (30 kVA)
Energy Storage 56.8 kWh
Application Energy Storage
Environmental Parameters
Enclosure Rating IP55
Operating Temperature 0° to 50°C (32° to 122°F)
Storage Temperature -10° to 50°C (14°to 122°F)

XES60 (60 Hz) Energy Storage System

  • 56.8 kWh Li Ion Batteries
  • 24 kW (30 kVA) 208/120 V 60 Hz Inverter
  • Energy Management System with Color HMI Touchscreen
  • Camlock & busbar connectors
  • NEMA receptacles
  • Maintenance charge input
  • Remote monitoring hardware
  • Variable speed forced air cooling
  • Weather-proof enclosure
  • Lifting Eye
  • Fork Pockets
Need installed dimensions with enclosure and tank? See Model Configurations
