Battery energy storage

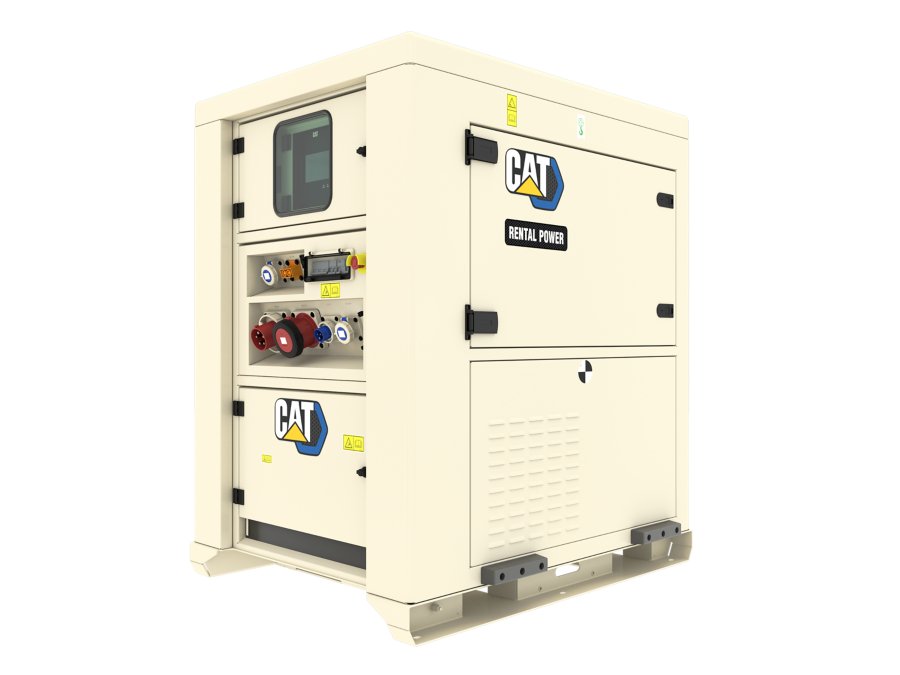

XES60 (50 Hz)
Cat® Compact ESS, is a mobile battery energy storage system that supplements traditional mobile power solutions to reduce noise, enable deployment of renewable energy sources, and, under certain conditions, allow customers to operate their generator more efficiently. Designed for rapid plug-and-play installation and integration, the Cat Compact ESS module can be used with any combination of diesel, natural gas or renewable energy sources such as solar or wind.
| Nominal Power | 36 kW (45 kVA) |
|---|---|
| Energy Storage | 56.8 kWh |
| Application | Energy Storage |
| Enclosure Rating | IP55 |
|---|---|
| Operating Temperature | 0° to 50°C (32°to 122°F) |
| Storage Temperature | -10° to 50°C (14°to 122°F) |
XES60 (50 Hz) Energy Storage System
- 56.8 kWh Li Ion Batteries
- 36 kW (45 kVA) 400/230 V 50 Hz Iinverter
- Energy Management System with Color HMI Touchscreen
- Busbar connectors
- CEE Form Receptacles
- Maintenance charge input
- Remote monitoring hardware
- Variable speed forced air cooling
- Weather-proof enclosure
- Fork Pockets
- Lifting Eye
-
