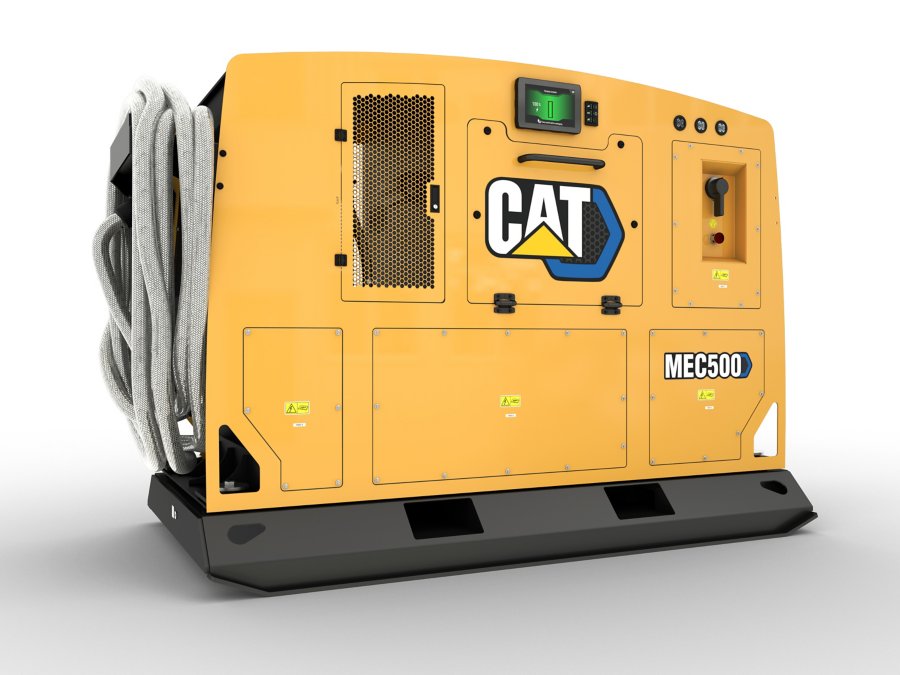

MEC500
A first of its kind for the mining industry, the Cat® MEC500 Mobile Equipment Charger is a standalone fast charging system designed to charge quickly and safely wherever it’s needed.
| Rated Power (AC Input) | 500 kW |
|---|---|
| Voltage Range (AC Input) | 400-660 VAC |
| Frequency Range | 50 or 60 Hz |
| Input Supply (AC Input) | 3-Phase Insulated Terra (IT) |
| Voltage Output | 300-1,000 VDC |
| Rated Current (DC Output) | 700 Amps |
| Cable Output - Cat Proprietary Connector | 700 Amp |
| Ambient Operating Temperature Range | -25° to +50° C (-13° to 122° F) |
|---|---|
| Storage | -40° to +80° C (-40° to +176° F) |
| Control Interface | CAN |
|---|---|
| Control Type | IEC 61851-23/24 (with CAN) |
| Compliance and Safety | CSA M421; UL2202 (under development) |
| MEC500 | 3650 lb |
|---|---|
| MEC500 with Optional Skid | 4490 lb |
-
