Gas generator sets

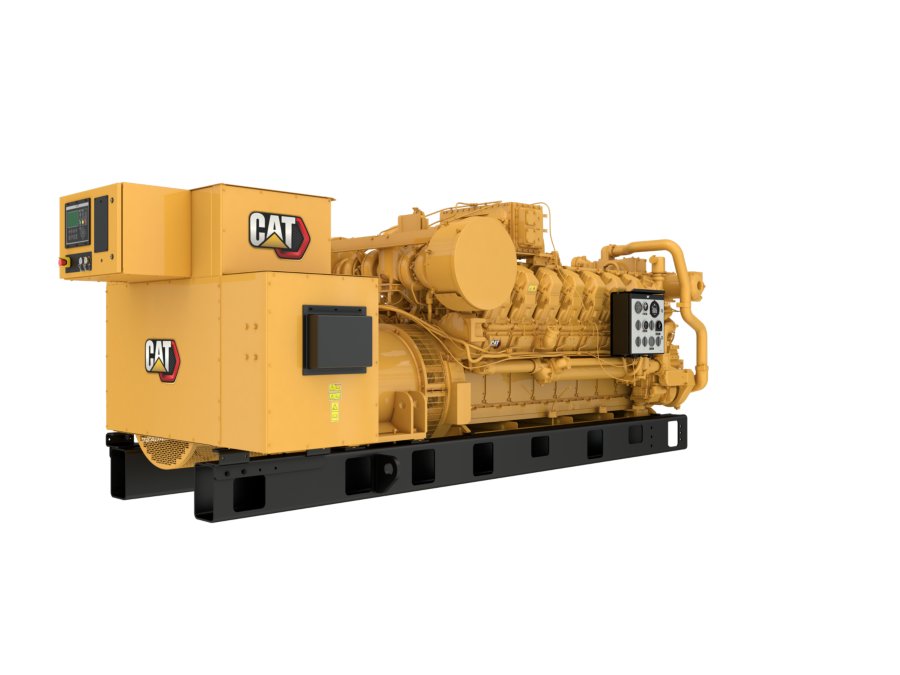

G3516A
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
- Frequency50 / 60 Hz
| Continuous Rating | 1085 ekW |
|---|---|
| Fuel Type | Natural Gas, Biogas, Coal Gas |
| Maximum Electrical Efficiency | 36.50% |
| Maximum Standby Rating | 1000 kw |
| Frequency | 50 / 60 Hz |
| RPM | 1200 / 1500 rpm |
| Engine Model | G3516A |
|---|---|
| Displacement | 4210 in³ |
| Aspiration | TA |
| Bore | 6.7 in |
| Stroke | 7.5 in |
| Length | 193 in |
|---|---|
| Width | 68 in |
| Height | 76 in |
| Dry Weight - Genset | 27670 lb |
Exhaust
- Dry exhaust manifolds, insulated and shielded
Generator
- Anti-condensation space heater
- Permanent magnet excitation
- SR4B
- Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
Starting/Charging
- 24V starting motors
General
- Crankshaft vibration damper and guard
- Paint - Caterpillar Yellow except rails are gloss black
- Operation and maintenance manuals
- Parts book
-
Download ↓Electric Power Rating Guide
-
Download ↓Gas Generator Set 50 and 60 Hz Ratings Guide
-
Download ↓G3516A Natural Gas Data Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
