G3412 Rear Right view
G3412 Left Hand Side
G3412 Right view
G3412 Front Right View
Gas generator sets

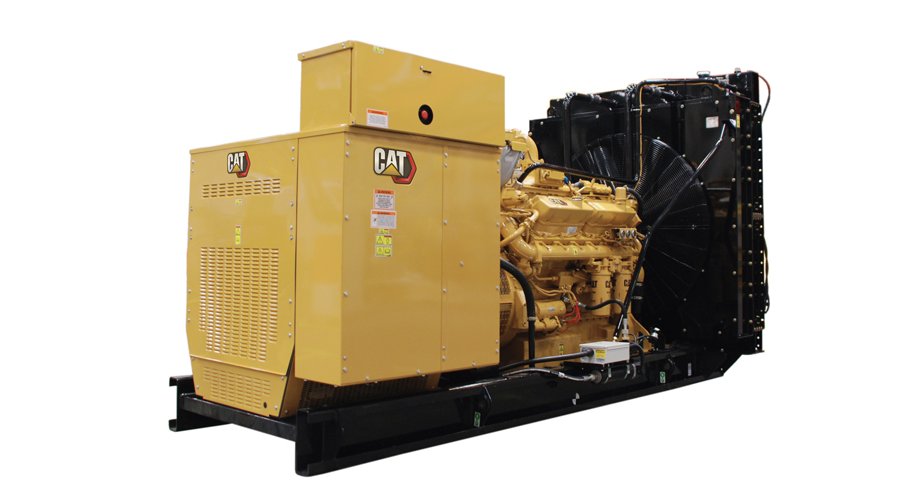

G3412

Using natural gas for combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.

  • Frequency50 or 60 Hz
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Continuous Rating 423 ekW @0.8pf
Fuel Type Natural Gas, Biogas, Field Gas, Propane
Maximum Electrical Efficiency 37.30%
Maximum Standby Rating 500 ekW @ 0.8pf
Frequency 50 or 60 Hz
RPM 1500 or 1800 rpm
Engine Specifications
Engine Model G3412
Displacement 1649 in³
Aspiration NA
Bore 5.4 in
Stroke 6 in
Generator Set Dimensions
Length 179 in
Width 88 in
Height 86 in
Dry Weight - Genset 9664 lb
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
  • Gas Generator Set 50 and 60 Hz Ratings Guide
    application/pdf
    Download ↓
  • G3412 Gas Generator Spec Sheet
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
