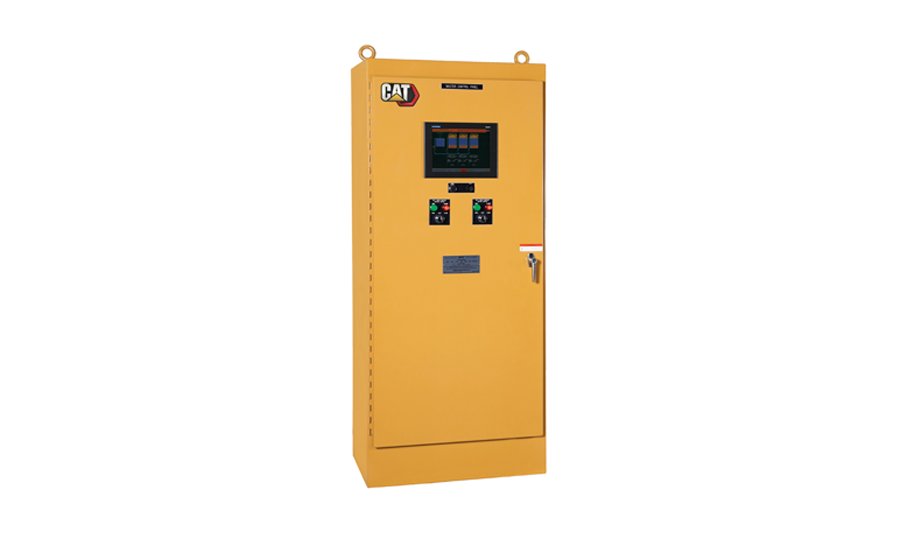

Engine Paralleling and Integration Control (EPIC)
The Engine Paralleling and Integration Control (EPIC) product line provides standard paralleling controls in a remote cabinet separate from the engine generator set and separate from switchgear (breakers and bus).
| Configuration | Remote modular paralleling control system (Master Control Panel for the first 2 generator sets and optional tie breaker, separate add-on control panels for up to 8 additional generator sets, utility paralleling control, and distribution control) |
|---|---|
| Modes of Operation | Emergency Standby with redundant master control, Utility paralleling, peak shaving, and closed transition to/from Generator Power (with optional utility control panel) |
| Application | LV and MV (208V-27kV) |
| ANSI Protective Devices | 15/25. 27/59, 81 O/U, 32, 40, 90 (Industrial Grade) |
|---|
| ANSI Protective Devices | 15/25. 27/59, 81 O/U, 32,47 (Industrial Grade) |
|---|
| Certifications | UL / cUL 508A |
|---|---|
| Control Panel Enclosure | NEMA 12 |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -20°C to 60°C |
Instant Auto Selector Switch
- Allows user to return sysem to automatic in the event of a touchscreen failure
-
