EMCP 4.4 Control Panel

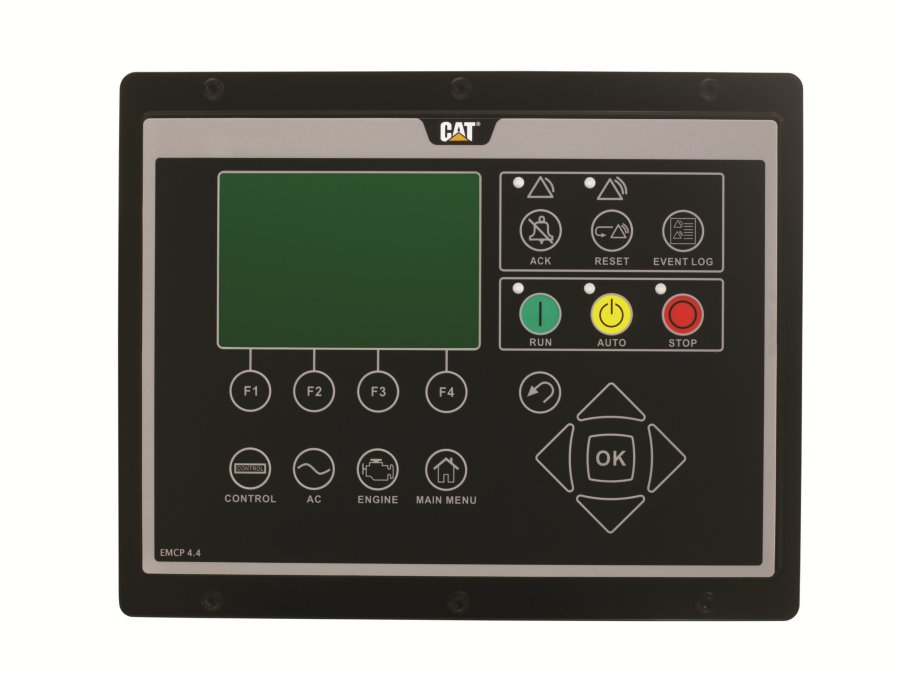

The EMCP 4 Control Panel provides all of the controls and system indicators in one easy to access interface.
Control
- Auto / Start / Stop control
- Remote start / stop
- Speed and voltage adjust
- Engine Cooldown Timer
- Local and remote emergency stop
- Engine Cycle Crank
- Programmable Cycle Timer
- Paralleling Multiple Generator Sets or Single Generator Set to Single Utility
Multiple Generator Set Paralleling
- Load sense / load demand
Single Gen to Single Utility Paralleling
- Emergency Mode with Closed/Open Return
- Standby Emergency
- Base Load Control
- Import/Export
- Soft Load/Unload
- Load shed/add (Up to Six Stages)
- LV/MV/HV capable (< 15kV)
- Genset & Utility Circuit Breaker control
Display
- A 480 x 320 pixel, 5.5 inch, white backlit graphical display denotes text alarm/event descriptions, set points, engine and generator monitoring, and is visible in all lighting conditions.
Generator Monitoring
- Voltage (L-L, L-N)
- Current (Phase)
- Average Volt, Amp, Frequency
- kW, kVAr, kVA (Average, Phase, %)
- Power Factor (Average, Phase)
- kW-hr, kVAr-hr (total)
Generator Protection
- Over/Under voltage (27/59)
- Over/Under frequency (81/OU)
- Generator phase sequence
- Bus phase sequence
- Overcurrent (50/51)
- Overcurrent (Thermal Damage Curve)
- Reverse Power (kW)(32)
- Reverse Reactive Power (kVAr) (32RV)
- Current Balance (46)
Engine Monitoring
- Engine speed (RPM)
- Battery voltage
- Oil pressure
- Oil Temperature
- Coolant temperature
- Multiple Language Support
- Crank attempt and successful start counter
- Run hours
- Enhanced engine monitoring (with electronic engines)
Engine Protection
- Low engine oil pressure (alarm)
- High engine oil temp (alarm and shutdown)
- High coolant temp (alarm and shutdown)
- Low coolant temp (alarm)
- Low coolant level (alarm)
- Overcrank
- Overspeed
- Control switch not in auto (alarm)
- Low, high, and weak battery voltage
Communications
- Primary and accessory CAN data links
- RS-485 annunciator data link
- Modbus RTU (RS-485 Half duplex)
- Modbus TCP (10BT Ethernet)
Inputs & Outputs
- Seventeen programmable digital outputs
- Two dedicated analog inputs
- Two programmable analog inputs
- Two dedicated digital inputs
- Twelve programmable digital inputs
Language Support
- Arabic, Bulgarian, Chinese, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hungarian, Icelandic, Italian, Latvian, Lithuanian, Japanese, Norwgian, Polish, Portguese, Romanian, Russian, Slovak, Slovene, Spanish, Swedish & Turkish
Environmental
- Control module operating temperature: -40°C to 70°C
- Display operating temperature: -20°C to 70°C
- Humidity: 100% condensing 30°C to 60°C
- Storage temperature: -40°C to 85°C
- Vibration: Random profile, 24-1000 Hz, 6.0G ms
-
