Gas generator sets

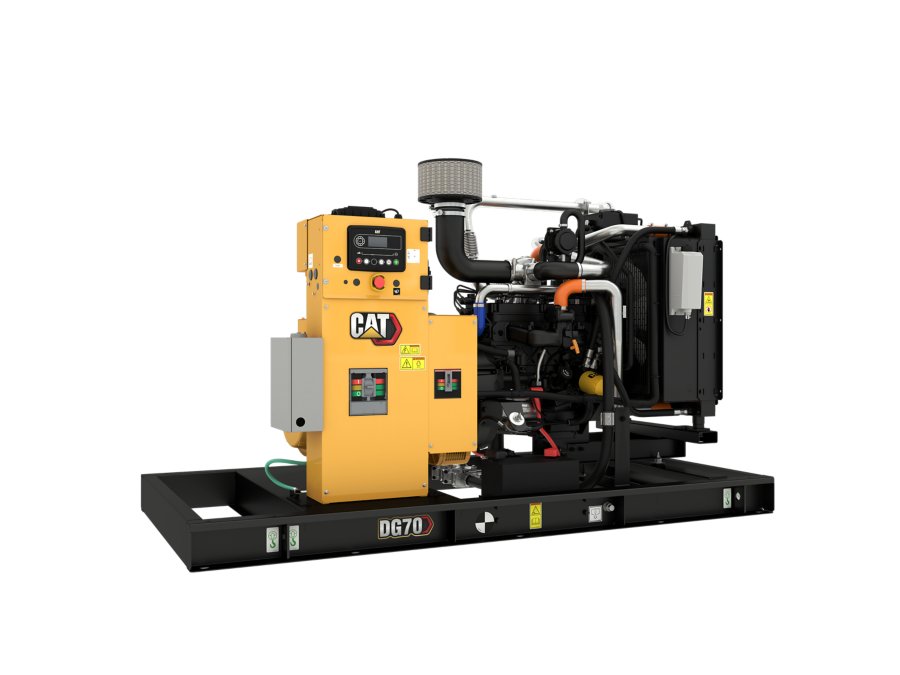

DG70 (Single phase and 3 phase)

The Cat® spark-ignited generator sets for stationary emergency applications provide a reliable and sustainable solution for your power needs. The ability to operate on multiple gaseous fuels and support automatic fuel changeover makes these products capable of powering a wide range of applications.

  • Frequency60 Hz
  • Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency and Non-Emergency Application
  • Voltage208-600
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Frequency 60 Hz
Natural Gas Rating 70 ekW
Gas Standby Rating Standby, Demand Response and Prime
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Speed 1800 rpm
Voltage 208-600
Engine Specifications
Engine Model 3.6L Inline 4
Bore 4.15 in
Stroke 4.05 in
Displacement 219.6 in³
Compression Ratio 9.7:1
Fuel System Electronic
Aspiration TCAC
Generator Set Dimensions
Length 93 in
Width 47 in
Height 55 in
Dry Weight - Genset 2416 lb

Control Panel

  • GCCP1.2
  • Remote monitoring software
Need installed dimensions with enclosure and tank? See Model Configurations
