Gas generator sets

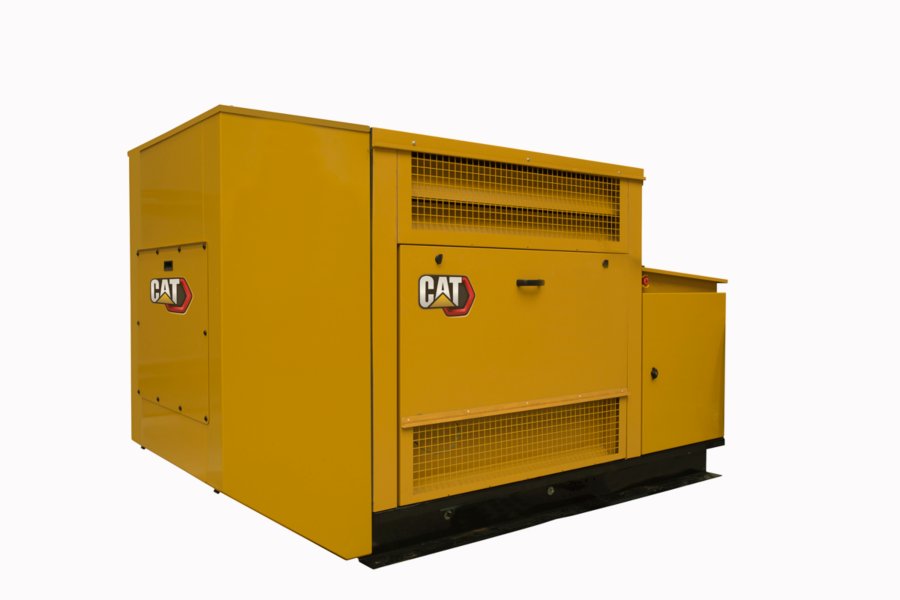

DG60-2 (3 Phase)
Producing reliable power measure up to your power standards. All are tested to maximum load before they leave any one of our ISO 9001 certified facilities. The EMCP 4 control panel, with a user-friendly interface, puts our advanced management and diagnostic tools in one. No two power needs are alike, which is why we offer a broad range of accessories and bolt-on system expansion attachments.
- Voltage480 Volts
- Frequency60 Hz
- Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency Application
| Voltage | 480 Volts |
|---|---|
| Frequency | 60 Hz |
| Natural Gas/LPG Rating | 60 ekW / 60 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Emergency Application |
| Speed | 1800 rpm |
| Natural Gas Rating | 60 ekW / 60 ekW |
| Engine Model | 5.7L V8, 4-cycle Gas |
|---|---|
| Displacement | 350 in |
| Fuel System | Natural Gas / LP Vapor |
| Aspiration | Naturally Aspirated |
| Governor Type | Electronic |
| Compression Ratio | 9.4:1 |
| Bore | 4 in |
| Stroke | 3.48 in |
| Length | 83.3 in |
|---|---|
| Width | 39.4 in |
| Height | 53.5 in |
| Weight | 2110 lb |
Air Inlet
- Single element air filter
Cooling
- Radiator and cooling fan complete with protective guards
- Standard ambient temperatures up to 50°C (122°F)
Exhaust
- Exhaust outlet with 3” pipe
Fuel
- Natural Gas or LP Vapor
- NPT connection
- Dual lock off valves
Generator
- Integrated Voltage Regulator
- IP23 Protection
- Matched to the performance and output characteristics of Cat engines
Governor
- Electronic governor (non adjustable)
Control Panel
- EMCP 4.2 Series generator set controller
Mounting
- Rubber vibration isolators
Starting/Charging
- 12 volt starting motor
- Batteries with rack and cables
-
Download ↓Electric Power Ratings Guide
-
Download ↓DG60-2 Natural Gas, LP Vapor Generator Set, 71.3 kVA 57.0 ekW 60 Hz
-
Download ↓DG60-4 Natural Gas, LP Vapor Generator Set, 71.3 kVA 57.0 ekW 60 Hz
Need installed dimensions with enclosure and tank? See Model Configurations
