Gas generator sets

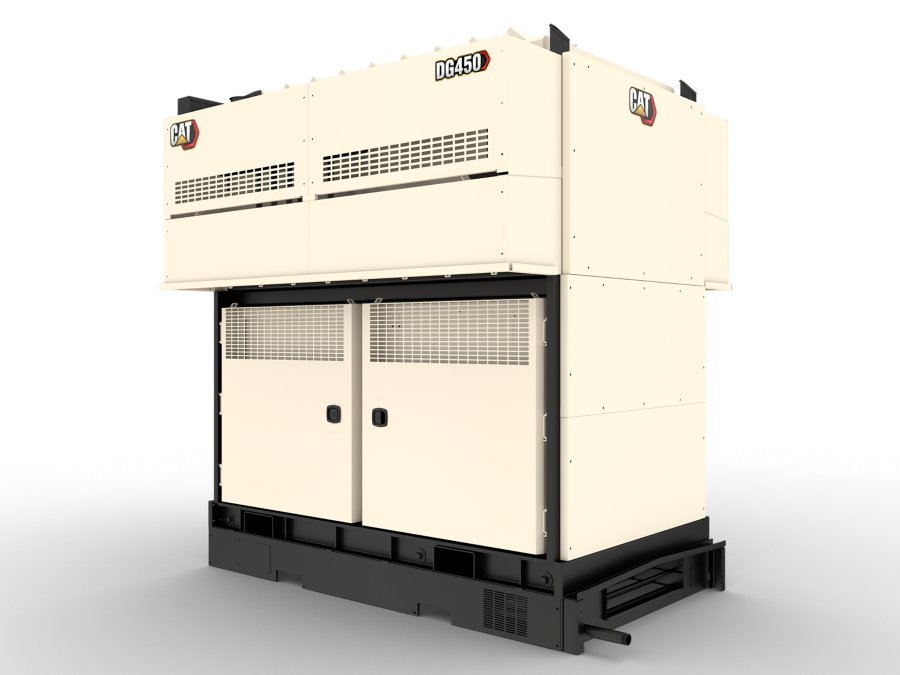

DG450 Compact (3-Phase)
The Cat® spark-ignited rich burn gas generator set can be used for emergency standby, prime, demand response and limited time power (LTP) applications. It also offers a reliable power with superior fuel efficiency, lower footprint and cleaner exhausts with ultra-low-NOx capability. With dual fuel kit option, automatic transition to propane from natural gas delivers uninterrupted operation. This also comes with an optional paralleling configuration up to 4 units in conjunction with a switchgear built on a Distributed Energy Resources (DERs) technology platform. The DERs technology continuously monitors, analyses and controls multiple energy sources.
- Frequency60 Hz
- Emissions/Fuel StrategyU.S. EPA Certified for Stationary Non-Emergency Applications
- Voltage480 VAC
| Frequency | 60 Hz |
|---|---|
| Natural Gas Rating | Max. 450 ekW |
| Emissions/Fuel Strategy | U.S. EPA Certified for Stationary Non-Emergency Applications |
| RPM | 1800 |
| Fuel Type | Natural Gas / Propane |
| Voltage | 480 VAC |
| Engine Model | Cat® 21.9L 4 Cycle V12 TCAC Rich Burn Gas |
|---|---|
| Fuel System | Gas mixer, Venturi |
| Aspiration | Turbocharged - Air-to-Air Aftercooled |
| Governor Type | Electronic |
| Displacement | 1336.42 in³ |
| Compression Ratio | 10.2:1 |
| Bore | 5.03 in |
| Stroke | 5.59 in |
| Length | 119 in |
|---|---|
| Width | 99 in |
| Height | 120 in |
Exhaust
- Dual stack dry exhaust manifolds, insulated and shielded
Fuel System
- Gas train with Zero Pressure regulator
- ECU controlled shutdown solenoid
- Airfuel Ratio Control, Venturi type Air-Gas mixer, throttle controlled valve
Controls
- GCCP 1.5
- Automatic Voltage Regulator (AVR)
Generator
- Class H Insulation
- PMG Excitation
Governing
- Electronic Governing
Starting/Charging
- 12V starting motors
General
- Paint - Caterpillar EPD white except rails are gloss black
- Operation and maintenance manuals
- Parts book
-
Download ↓DG450 (3 Phase) 450 ekW US EPa Cerfified for Non-Emergency data sheet
-
Download ↓Electric Power Rating Guide
Need installed dimensions with enclosure and tank? See Model Configurations
