DG45 Front Right View
DG45 Front Left View
DG45 Rear Right View
DG45 Rear Left View
DG45 Enclosure Rear Left View
DG45 Enclosure Rear Right View
DG45 Enclosure
DG45 Enclosure
Gas generator sets

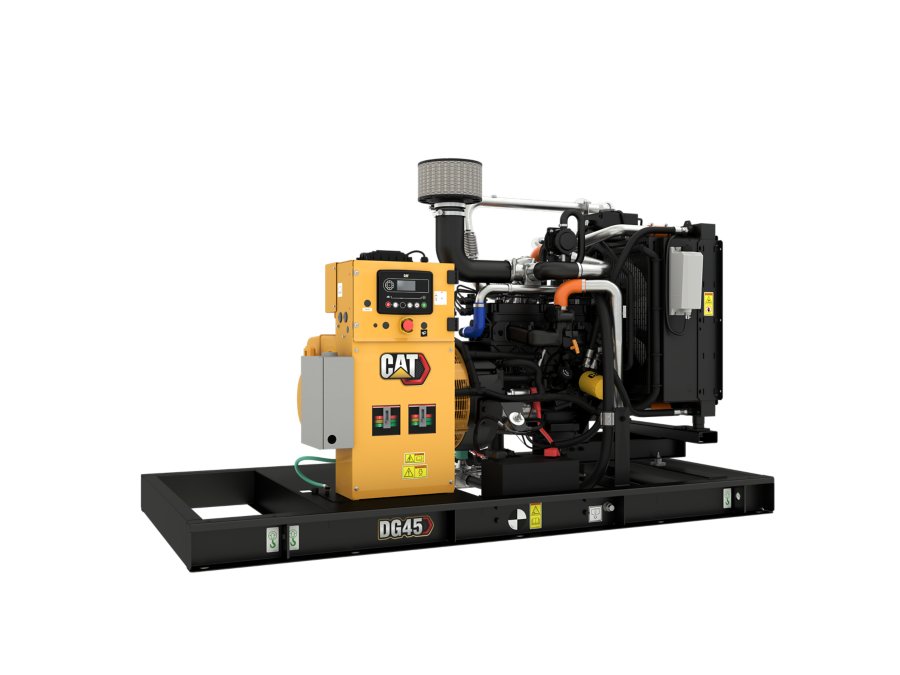

DG45 (Single Phase and 3 Phase)

The Cat® spark-ignited generator sets for stationary emergency applications provide a reliable and sustainable solution for your power needs. The ability to operate on multiple gaseous fuels and support automatic fuel changeover makes these products capable of powering a wide range of applications.

  • Frequency60 Hz
  • Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency Application
  • Voltage208-600
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Frequency 60 Hz
Gas Standby Rating 45 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application
Speed 1800 rpm
Voltage 208-600
Engine Specifications
Engine Model 3.6L Inline TCAC
Bore 4.15 in
Stroke 4.05 in
Displacement 219.6 in³
Compression Ratio 9.7:1
Fuel System Electronic
Aspiration TCAC
Generator Set Dimensions
Length 93 in
Width 47 in
Height 55 in
Dry Weight - Genset 2416 lb

Control Panel

  • GCCP1.2
  • Remote monitoring software
Need installed dimensions with enclosure and tank? See Model Configurations
