DG150 Rear Right View
DG150 Rear Left View
DG150 Front Left View
DG150 Front Right View
DG150 Enclosure Rear Right View
DG150 Enclosure Rear Left View
DG150 Enclosure Front Left View
DG150 Enclosure Front Right View
Gas generator sets

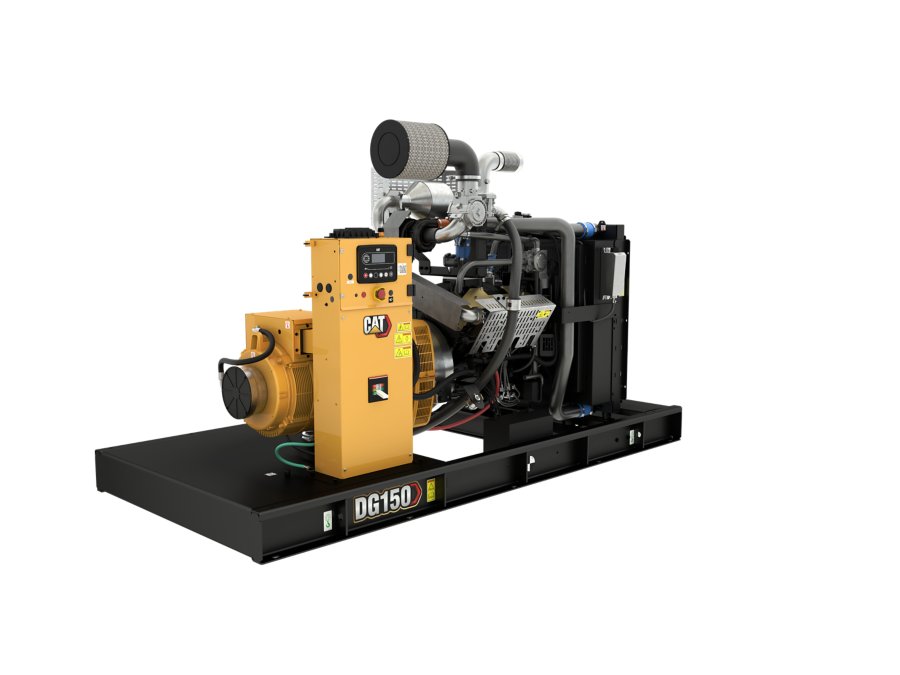

DG150 (3 phase)

The Cat® spark-ignited generator sets for stationary emergency and non-emergency (demand response) applications provide a much cleaner and sustainable solution for your power needs. The ability to run on various types of gaseous fuels, adapting automatic fuel change-over and microgrid compatibility, make these products capable to power a wide range of applications.

  • Frequency60 Hz
  • Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency and Non-Emergency Application
  • Voltage208-600
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Frequency 60 Hz
Natural Gas Rating 150 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Voltage 208-600
Speed 1800 rpm
Gas Standby Rating Standby, Demand Response and Prime
Engine Specifications
Engine Model V8, 9.1L TCAC
Bore 4.3 in
Stroke 4.75 in
Displacement 555.3 in³
Compression Ratio 9.5:1
Aspiration TCAC
Fuel System Electronic
Generator Set Dimensions
Length 114 in
Width 55 in
Height 68 in
Dry Weight - Genset 4500 lb

Control Panel

  • GCCP1.2
  • Electric Power Rating guide
    application/pdf
    Download ↓
  • DG100 - DG200 Enclosure Brochure
    application/pdf
    Download ↓
  • DG150, 150 ekW, 3 Phase data sheet
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
