Gas generator sets

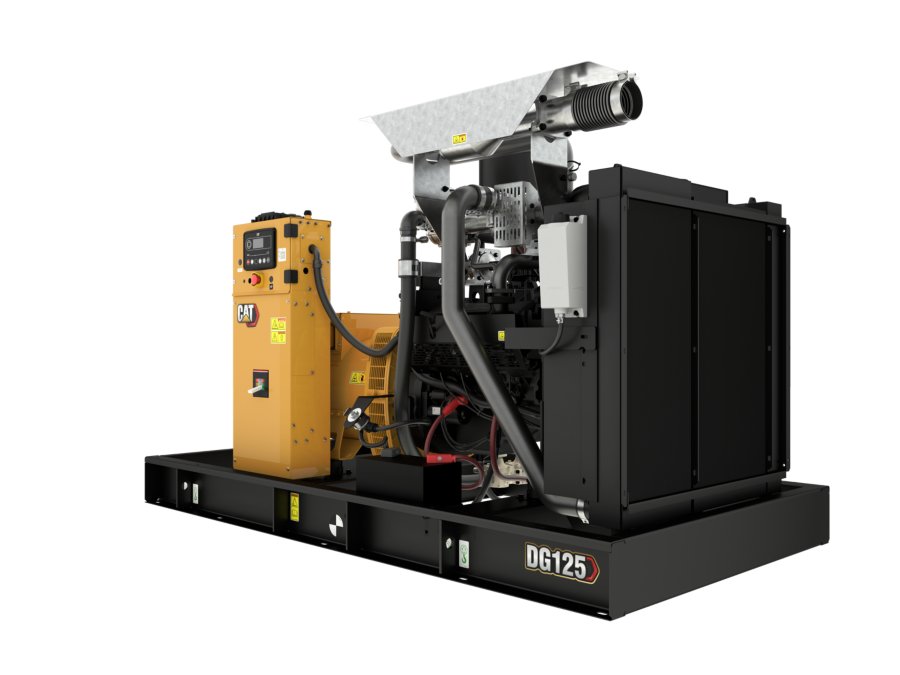

DG125 (Single-phase and 3 phase)

The Cat® spark-ignited generator sets for stationary emergency applications provide a reliable and sustainable solution for your power needs. The ability to operate on multiple gaseous fuels and support automatic fuel changeover makes these products capable of powering a wide range of applications.

  • Frequency60 Hz
  • Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency and Non-Emergency Application
  • Voltage208-600
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Frequency 60 Hz
Gas Standby Rating 125 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency and Non-Emergency Application
Voltage 208-600
Speed 1800 rpm
Natural Gas Rating 125 ekW
Engine Specifications
Engine Model V8, 6.2L TCAC
Bore 4 in
Stroke 3.75 in
Displacement 378.3 in³
Compression Ratio 9.8:1
Aspiration TCAC
Fuel System Electronic
Generator Set Dimensions
Length 96 in
Width 51 in
Height 57 in
Dry Weight - Genset 3226 lb

Control Panel

  • GCCP1.2
Need installed dimensions with enclosure and tank? See Model Configurations
