DG100 Front Right View
DG100 Front Left View
DG100 Rear Right View
DG100 Rear Left View
DG100 Enclosure Rear Left View
DG100 Enclosure Rear Right View
Gas generator sets

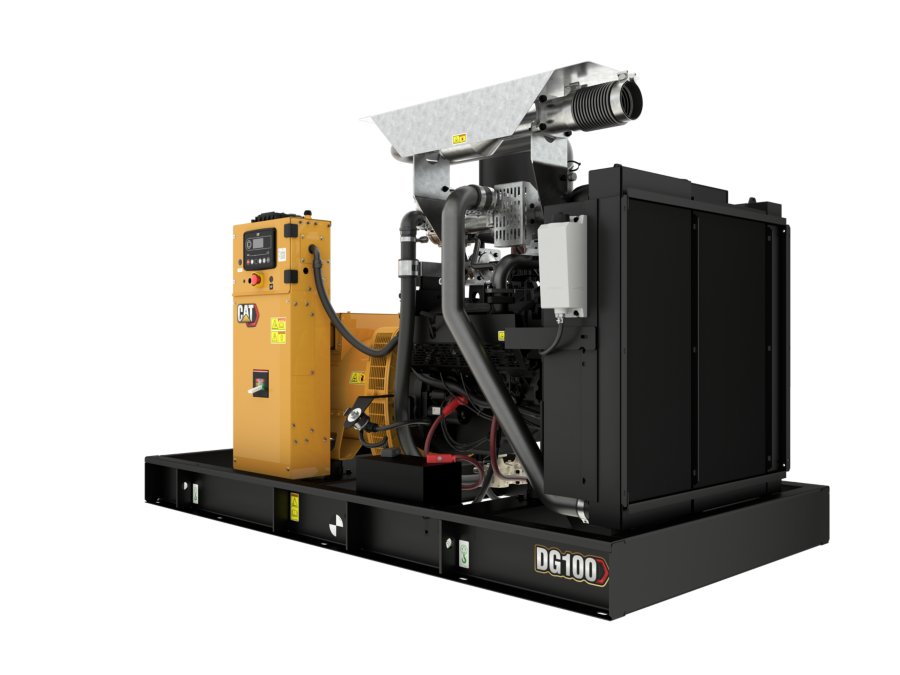

DG100 (Single phase and 3 phase)

The Cat® spark-ignited generator sets for stationary emergency applications provide a reliable and sustainable solution for your power needs. The ability to operate on multiple gaseous fuels and support automatic fuel changeover makes these products capable of powering a wide range of applications.

  • Frequency60 Hz
  • Emissions/Fuel StrategyU.S. EPA Certified for Stationary Emergency Application
  • Voltage208-600
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Frequency 60 Hz
Gas Standby Rating 100 ekW
Emissions/Fuel Strategy U.S. EPA Certified for Stationary Emergency Application
Speed 1800 rpm
Voltage 208-600
Engine Specifications
Engine Model V8, 6.2L TCAC
Stroke 3.75 in
Displacement 378.3 in³
Compression Ratio 9.8:1
Fuel System Electronic
Aspiration TCAC
Bore 4 in
Generator Set Dimensions
Length 96 in
Width 51 in
Height 57 in
Dry Weight - Genset 3007 lb

Control Panel

  • GCCP1.2
  • Remote monitoring software
Need installed dimensions with enclosure and tank? See Model Configurations
