Diesel generator sets

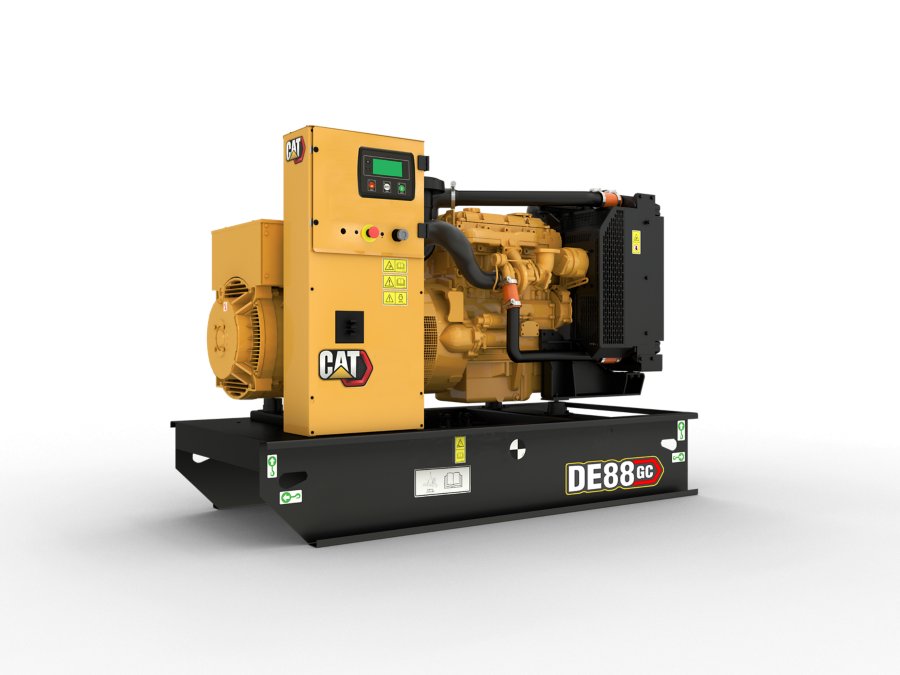

DE88 GC (50 Hz)
Producing 88 kVA of reliable power at 50 Hz, our DE88 GC diesel generator sets designed to ISO 8528-5 transient response requirements.
- Maximum Rating88 kVA
- Minimum Rating88 kVA
- Emissions/Fuel StrategyNon Regulated
- Voltage380 to 415 Volts
- Frequency50 Hz
- Duty CycleStandby
| Maximum Rating | 88 kVA |
|---|---|
| Minimum Rating | 88 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
| Engine Model | C4.4, In-line 4, 4-cycle diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5 in |
| Displacement | 268.5 in |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Fuel System | Inline |
| Governor Type | Mechanical |
| Length - Maximum | 89.6 in |
|---|---|
| Width - Maximum | 43.3 in |
| Height - Maximum | 57.7 in |
| Dry Weight - Genset (maximum) | 1245 lb |
Engine
- C4.4, Inline 4 cylinder, 4 stroke diesel
Fuel Storage
- Single wall 8 hour fuel tank
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Genset Control
- GCCP 1.1
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE88 GC Spec Sheet
-
Download ↓DE33 to DE220 GC Enclosure Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
