Diesel generator sets

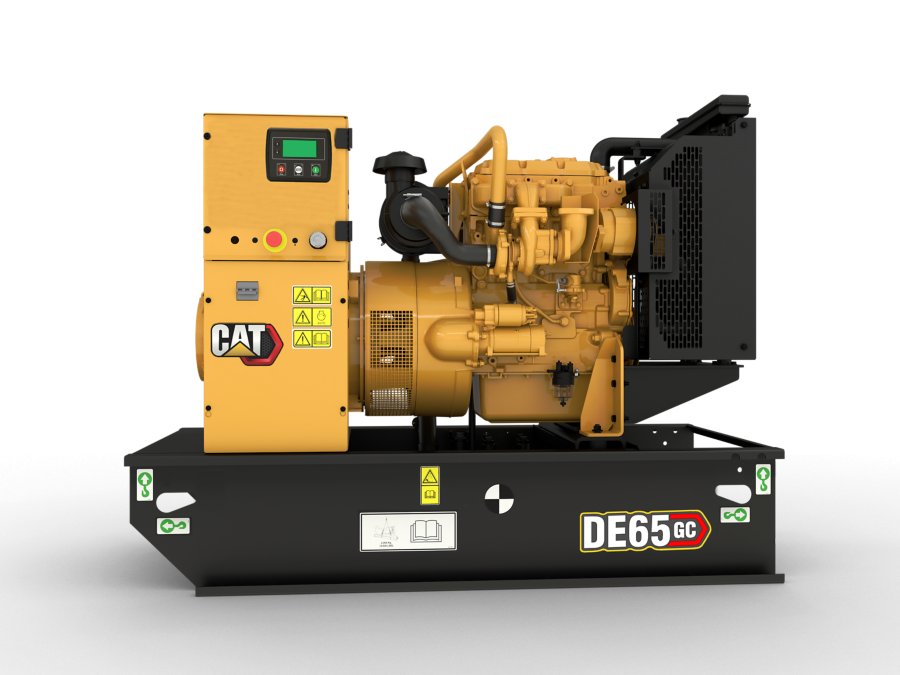

DE65 GC (60 Hz)
Producing reliable power of 60 ekW at 60 Hz, our DE65 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- Maximum Rating60 ekW
- Minimum Rating60 ekW
- Emissions/Fuel StrategyNon Regulated
- Voltage220 to 480 Volts
- Frequency60 Hz
- Duty CycleStandby
| Maximum Rating | 60 ekW |
|---|---|
| Minimum Rating | 60 ekW |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 220 to 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Model | Cat® C3.3, In-line 3, 4-cycle diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5 in |
| Displacement | 201.4 in³ |
| Compression Ratio | 17.25:1 |
| Aspiration | Turbocharged |
| Fuel System | Inline |
| Governor Type | Mechanical |
| Length - Maximum | 89.7 in |
|---|---|
| Width - Maximum | 35.4 in |
| Height - Maximum | 52 in |
| Dry Weight - Genset (maximum) | 1031 lb |
Engine
- C3.3, Inline 3 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE65 GC Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
