Diesel generator sets

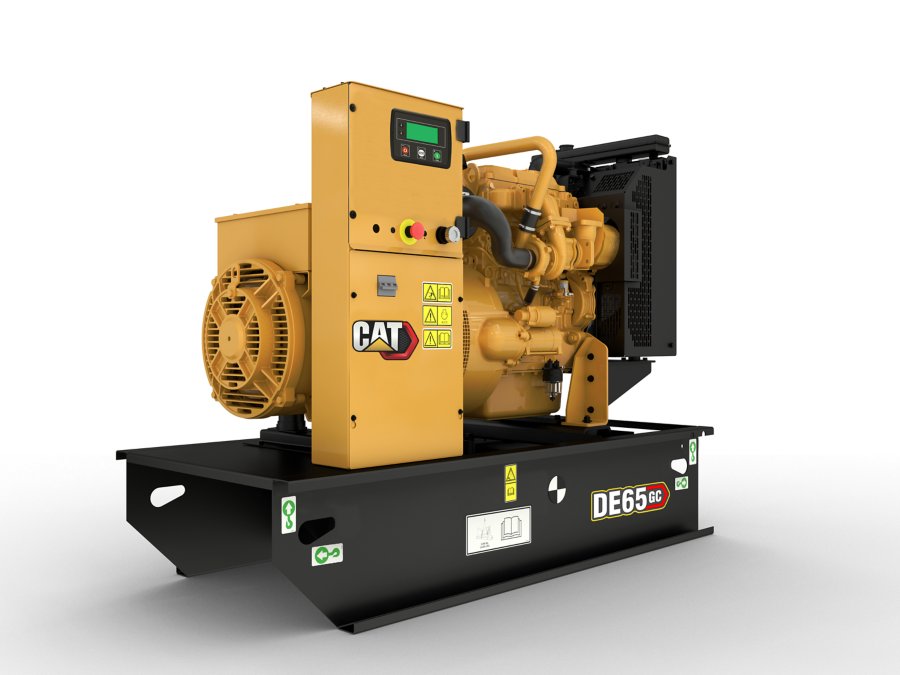

DE65 GC (50 Hz)

Producing 65 kVA of reliable power at 50 Hz, our DE65 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

  • Maximum Rating65.0 kVA
  • Minimum Rating65.0 kVA
  • Emissions/Fuel StrategyNon Regulated
  • Voltage380 to 415 Volts
  • Frequency50 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 65.0 kVA
Minimum Rating 65.0 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby
Engine Specifications
Engine Model Cat® C3.3, In-line 3, 4-cycle diesel
Bore 4.1 in
Stroke 5 in
Displacement 201.4 in³
Compression Ratio 17.25:1
Aspiration Turbocharged
Fuel System Inline
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 89.7 in
Width - Maximum 35.4 in
Height - Maximum 52 in
Dry Weight - Genset (maximum) 2273 lb

Engine

  • C3.3, Inline 3 cylinder, 4 stroke diesel

Genset Control

  • GCCP 1.1

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Cat GC enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
Need installed dimensions with enclosure and tank? See Model Configurations
