Diesel generator sets

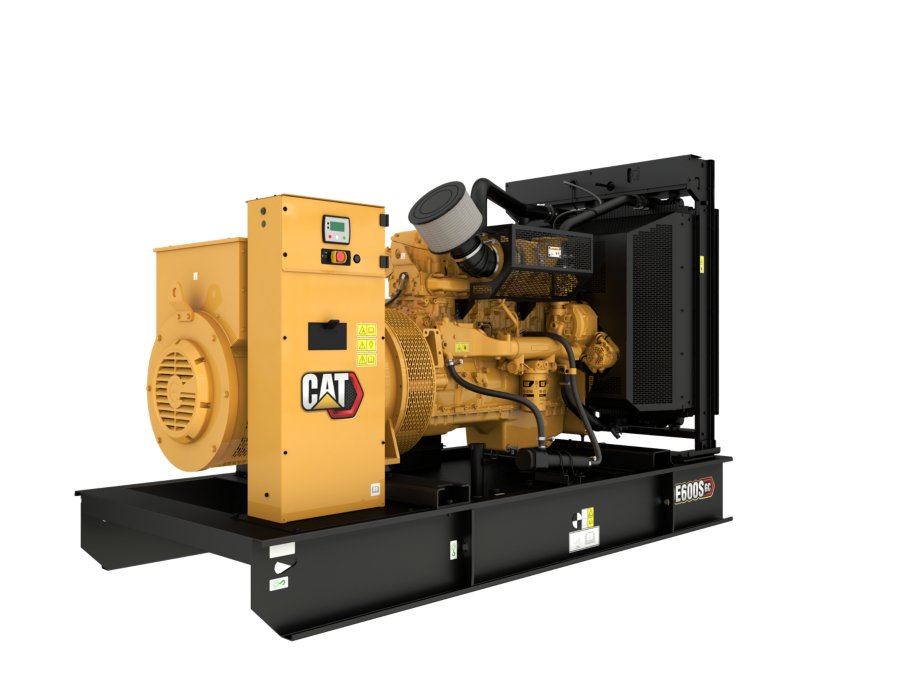

DE600S GC
Producing reliable power 600 kW at 60 Hz, our DE600S GC generator set powerd by C15 diesel engine designed to ISO 8528-5 transient response requirements.
- Maximum Rating600 ekW
- Minimum Rating600 ekW
- Emissions/Fuel StrategyNon Regulated
- Voltage220 to 480 Volts
- Frequency60 Hz
- Duty CycleStandby
| Maximum Rating | 600 ekW |
|---|---|
| Minimum Rating | 600 ekW |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 220 to 480 Volts |
| Frequency | 60 Hz |
| Speed | 1800 RPM |
| Duty Cycle | Standby |
| Engine Model | C15 In-line 6, 4-cycle diesel |
|---|---|
| Bore | 5.4 in |
| Stroke | 6.8 in |
| Displacement | 928 in³ |
| Compression Ratio | 16.1:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
| Length - Maximum | 131 in |
|---|---|
| Width - Maximum | 60.6 in |
| Height - Maximum | 86.1 in |
| Dry Weight - Genset (maximum) | 8364 lb |
Engine
- Cat® C15 Inline 6 cylinder, 4 stroke diesel
Air Inlet
- Air cleaner
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Cooling
- Package mounted radiator
Alternator
- A Frame standard alternator
Control Panel
- EMCP 4 Genset controller
Fuel Storage
- Single wall 8 hour fuel tank
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Fuel
- Fuel priming pump
- Primary fuel filter with integral water separator
- Secondary fuel filters
Exhaust
- Exhaust flange outlet
Electrical Options
- 3 Pole Circuit breaker
- Neutral earth link
- 24 Volt battery with rack and cables
Air inlet system
- Air cleaner; light duty with disposable element
Lube system
- Lubricating oil
- Oil drain line with valve
Generator
- Matched to the performance and output characteristics of Cat engines
- IP23 Protection
- Load adjustment module provides engine relief upon load impact and improves load acceptance and recovery time
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
General
- Engine and alternator pre paint, Caterpillar yellow
- Engine and alternator pre paint, Caterpillar yellow
- Paint - Caterpillar yellow except rails and radiators gloss black
Power Termination
- Busbar
Generator and Attachments
- Power center, IP22
- Optional LC Frame generator - IP23 Protection
- Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre
- Integrated voltage regulator (IVR)
- Segregated low voltage (AC/DC) wiring panel
Mounting
- Rubber vibration isolators
Governing System
- Cat electronic governor (ADEM A4).
Lube System
- Oil drain valves
- Oil cooler
Mounting System
- Captive linear vibration isolators between base and engine-generator includes lifting provisions and termination points for coolant and lube oil drain lines
Starting/Charging
- 24 volt starting motor
- Batteries
- 24 Volt battery with rack and cables
-
