DE55GC
DE55GC
DE55GC
DE55GC
DE55GC
DE55GC
Diesel generator sets

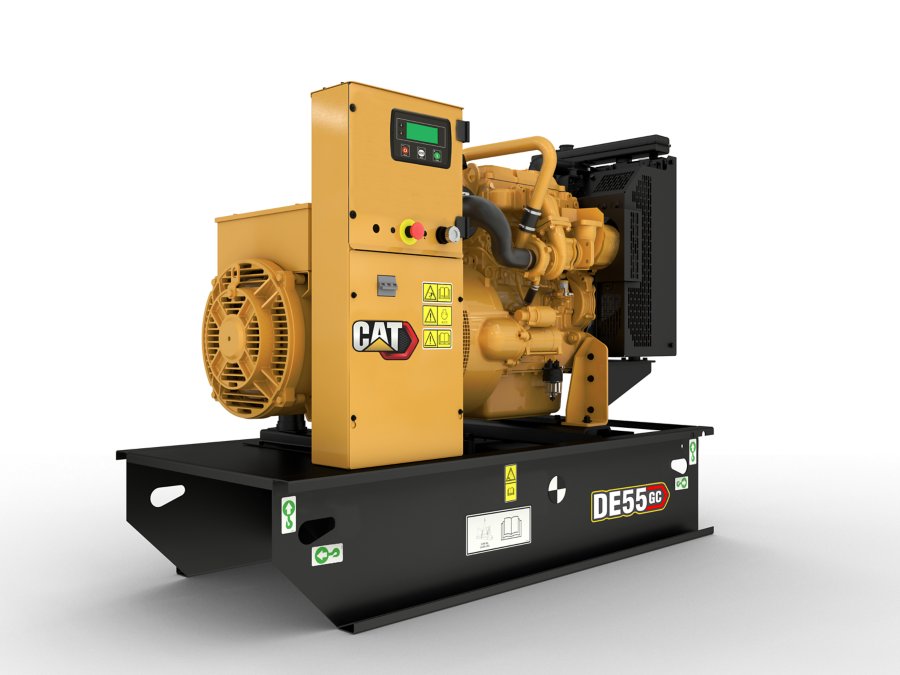

DE55 GC (50 Hz)

Producing 55 kVA of reliable power at 50 Hz, our DE55 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

  • Maximum Rating55.0 kVA
  • Minimum Rating55.0 kVA
  • Emissions/Fuel StrategyNon Regulated
  • Voltage380 to 415 Volts
  • Frequency50 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 55.0 kVA
Minimum Rating 55.0 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby
Engine Specifications
Engine Model Cat® C3.3, In-line 3, 4-cycle diesel
Bore 4.1 in
Stroke 5 in
Displacement 201.4 in³
Compression Ratio 17.25:1
Aspiration Turbocharged
Fuel System Inline
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 76.6 in
Width - Maximum 34.3 in
Height - Maximum 48.7 in
Dry Weight - Genset (maximum) 2114 lb

Engine

  • C3.3, Inline 3 cylinder, 4 stroke diesel

Genset Control

  • GCCP 1.1

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Enclosure

  • Cat GC enclosure

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
Need installed dimensions with enclosure and tank? See Model Configurations
