Diesel generator sets

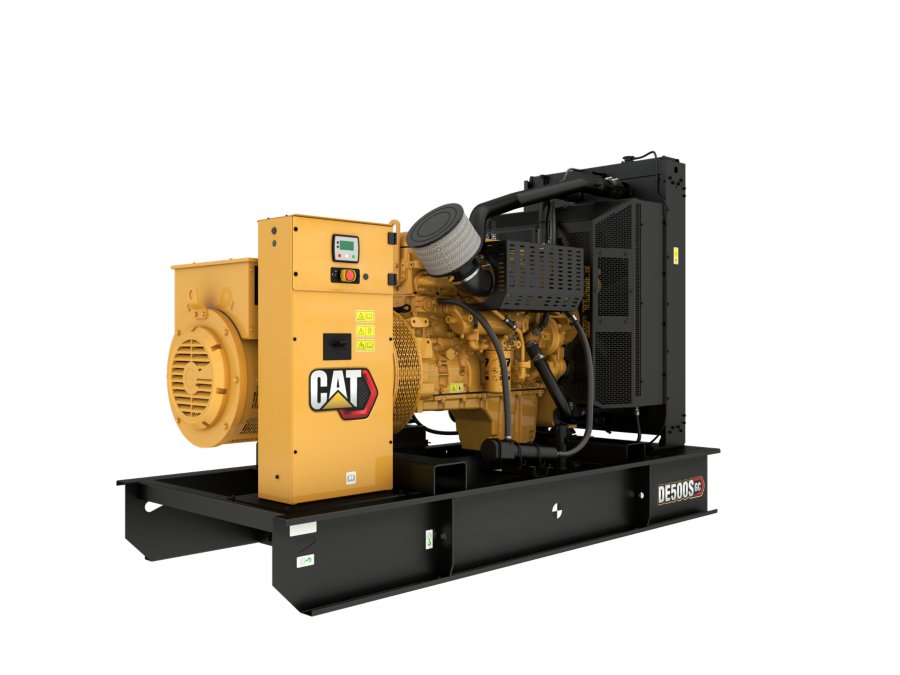

DE500S GC (60 Hz)

Producing reliable power 500 ekW at 60 Hz, our DE500S GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.

  • Maximum Rating500 ekW
  • Minimum Rating500 ekW
  • Emissions/Fuel StrategyNon Regulated
  • Voltage220 to 480 Volts
  • Frequency60 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 500 ekW
Minimum Rating 500 ekW
Emissions/Fuel Strategy Non Regulated
Voltage 220 to 480 Volts
Frequency 60 Hz
Speed 1800 RPM
Duty Cycle Standby
Engine Specifications
Engine Model C13 In-line 6, 4-cycle diesel
Bore 5.1 in
Stroke 6.2 in
Displacement 763 in³
Compression Ratio 15.8:1
Aspiration Turbocharged Air-to-Air Aftercooled
Fuel System EUI
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 122 in
Width - Maximum 52.7 in
Height - Maximum 85.4 in
Dry Weight - Genset (maximum) 6693 lb

Engine

  • Cat® C13 Inline 6 cylinder, 4 stroke diesel

Control Panels

  • GCCP 1.1

Governor

  • Mechanical governor

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

Cooling System

  • Radiator and cooling fan with guards
  • Fan drive, battery charging alternator drive

Electrical Options

  • 3 Pole Circuit breaker
  • Neutral earth link
  • 24 Volt battery with rack and cables

Air inlet system

  • Air cleaner; light duty with disposable element

Lube system

  • Lubricating oil
  • Oil drain line with valve

Mounting system

  • Captive linear vibration isolators
  • Lifting provision and drag points

General

  • Engine and alternator pre paint, Caterpillar yellow
  • Engine and alternator pre-paint, Caterpillar yellow

Generator and Attachments

  • Mandatory option circuit breaker, IEC, 3 pole, mounted in power centre

Packaged Generator Set

  • Service indicator
  • Radiator package mounted
  • Disposable air filter
  • Coolant level sight gauge
  • Coolant drain line with valve
  • Low coolant level sensor

Governing System

  • Cat electronic governor (ADEM A4)

Lube System

  • Lubricating oil
  • Oil cooler
  • Oil drain valves

Mounting System

  • Captive linear vibration isolators between base and engine-generator
  • Includes lifting provisions and termination points for coolant and lube oil drain lines

Starting / Charging System

  • 24V battery with rack and cables
  • DE500S GC, 60 Hz, 500 kW, Spec Sheet
    application/pdf
    Download ↓
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
