Diesel generator sets

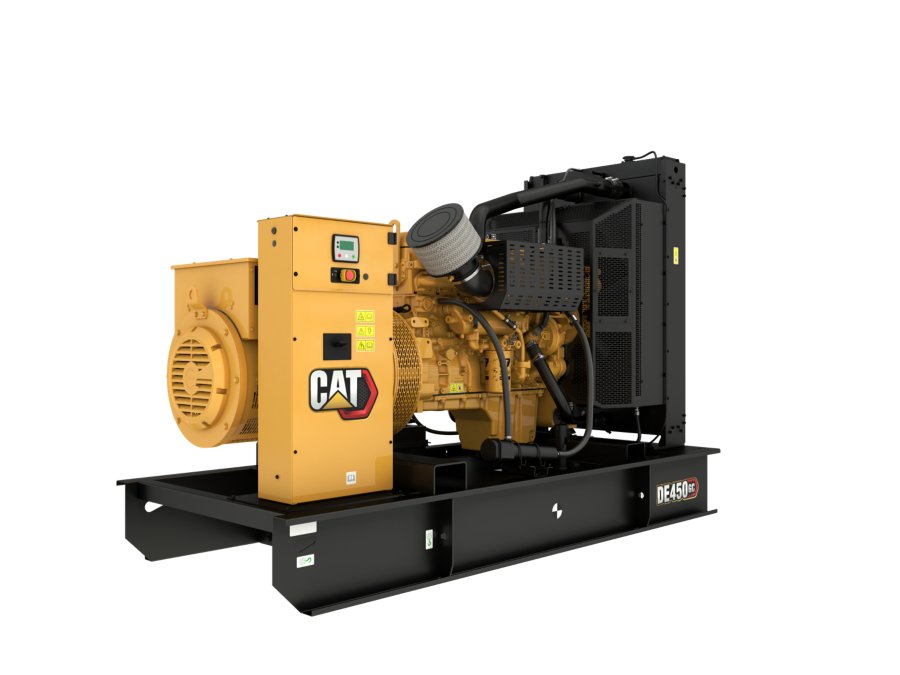

DE450 GC (50 Hz)
Producing reliable power 450 kVA at 50 Hz, our DE450 GC generator set powerd by C13 diesel engine designed to ISO 8528-5 transient response requirements.
- Maximum Rating450 kVA
- Minimum Rating450 kVA
- Emissions/Fuel StrategyNon Regulated
- Voltage380 to 415 Volts
- Frequency50 Hz
- Duty CycleStandby
| Maximum Rating | 450 kVA |
|---|---|
| Minimum Rating | 450 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
| Engine Model | C13 In-line 6, 4-cycle diesel |
|---|---|
| Bore | 5.1 in |
| Stroke | 6.2 in |
| Displacement | 763 in³ |
| Compression Ratio | 15.8:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
| Length - Maximum | 122 in |
|---|---|
| Width - Maximum | 52.7 in |
| Height - Maximum | 83.4 in |
| Dry Weight - Genset (maximum) | 6402 lb |
Engine
- Cat® C13 Inline 6 cylinder, 4 stroke diesel
Control Panels
- GCCP 1.1
Governor
- Mechanical governor
Alternator
- A Frame standard alternator
Fuel Storage
- Single wall 8 hour fuel tank
Cooling System
- Radiator and cooling fan with guards
- Fan drive, battery charging alternator drive
Electrical Options
- 3 Pole Circuit breaker
- Neutral earth link
- 24 Volt battery with rack and cables
Air inlet system
- Air cleaner; light duty with disposable element
Lube system
- Lubricating oil
- Oil drain line with valve
Mounting system
- Captive linear vibration isolators
- Lifting provision and drag points
General
- Engine and alternator pre paint, Caterpillar yellow
-
Download ↓DE450 GC, 50 Hz 450 kVA, Spec Sheet
-
Download ↓Electric Power Ratings Guide
Need installed dimensions with enclosure and tank? See Model Configurations
