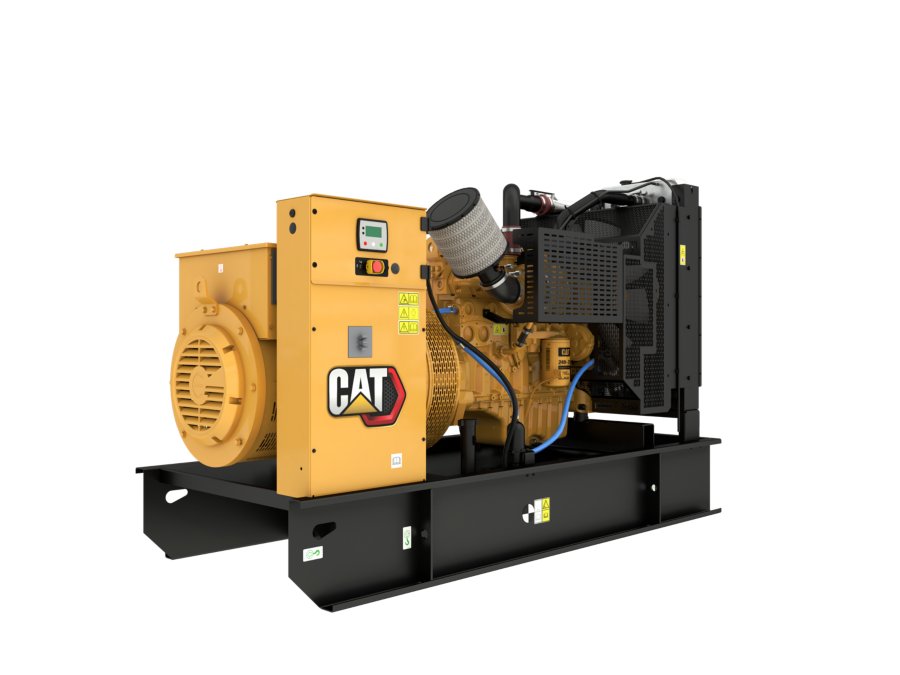

DE400 GC (50 Hz)

The DE400 GC diesel generator sets have been developed for your standby applications. Producing reliable power of 400 kVA at 50 Hz, our C9.3 diesel-powered DE400 GC generator set is designed to ISO 8528-5 transient response requirements

Maximum Rating400 kVA
Minimum Rating400 kVA
Emissions/Fuel StrategyNon-Certified Emissions
Voltage380 to 415 Volts
Frequency50 Hz
Duty CycleStandby

Have questions about this product?

Request a Quote

800.768.4200

Generator Set Specifications
Maximum Rating	400 kVA
Minimum Rating	400 kVA
Emissions/Fuel Strategy	Non-Certified Emissions
Voltage	380 to 415 Volts
Frequency	50 Hz
Speed	1500 rpm
Duty Cycle	Standby

Engine Specifications
Engine Model	C9.3B, I-6, 4-cycle diesel
Bore	4.53 in
Stroke	5.87 in
Displacement	567.5 in³
Compression Ratio	16.5:1
Aspiration	Turbocharged Air-to-Air Aftercooled
Fuel System	Common Rail
Governor Type	ADEM™A6

Generator Set Dimensions
Length - Maximum	104.8 in
Width - Maximum	44 in
Height - Maximum	69.5 in
Dry Weight - Genset (maximum)	5070.6 lb

Engine

C9.3B, Inline 6 cylinder, 4 stroke diesel

Air, Cooling & Exhaust

Standard air filter

Genset Control

GCCP 1.1

Governor

Adem A4

Alternator

A Frame standard alternator

Fuel Storage

Single wall 8 hour fuel tank

General

Engine and alternator pre-paint, Caterpillar yellow

Electric Power Ratings Guide
application/pdf
Download ↓
DE400 GC 50 Hz 400 kVA, Non Certified Emissions Spec Sheet
application/pdf
Download ↓
DE400 GC Enclosure Spec Sheet
application/pdf
Download ↓

Need installed dimensions with enclosure and tank? See Model Configurations
