Diesel generator sets

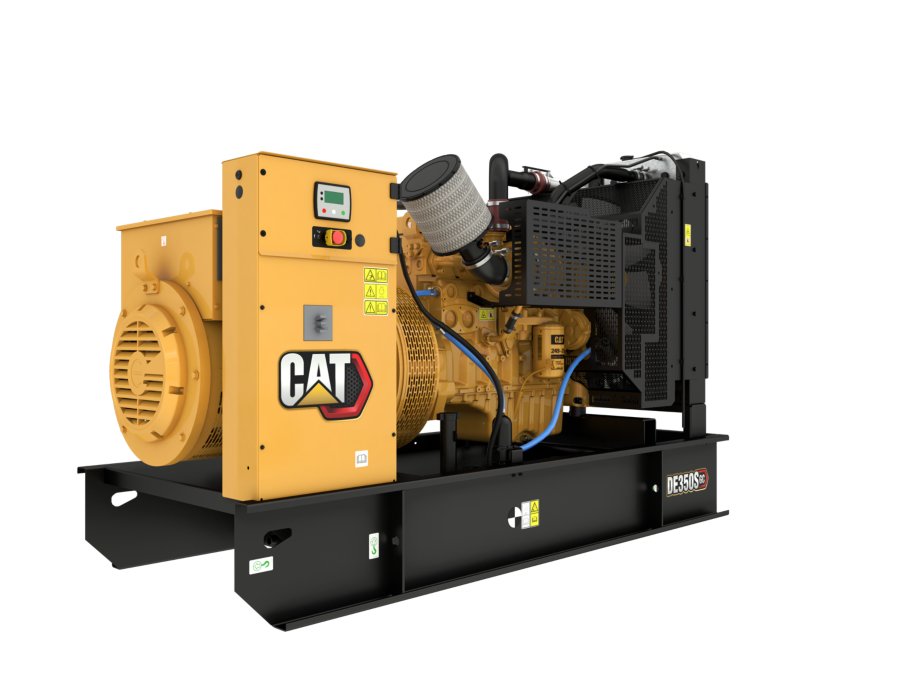

DE350S GC (60 Hz)

The DE350S GC diesel generator sets have been developed for your standby applications. Producing reliable power of 350 ekW at 60 Hz, our C9.3 diesel-powered DE350S GC generator set is designed to ISO 8528-5 transient response requirements

  • Maximum Rating350 ekW
  • Minimum Rating350 ekW
  • Emissions/Fuel StrategyLow Fuel, R96/EUIIIa
  • Voltage220 to 480 Volts
  • Frequency60 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 350 ekW
Minimum Rating 350 ekW
Emissions/Fuel Strategy Low Fuel, R96/EUIIIa
Voltage 220 to 480 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C9.3B ATAAC, I-6, 4-Stroke Water-Cooled Diesel
Bore 4.53 in
Stroke 5.87 in
Displacement 567.5 in³
Compression Ratio 16.5:1
Aspiration Air to Air Aftercooled
Fuel System Direct Injection
Governor Type Adem™A4
Generator Set Dimensions
Length - Maximum 186.7 in
Width - Maximum 79.3 in
Height - Maximum 84 in

Engine

  • C9.3B, Inline 6 cylinder, 4 stroke diesel

Air, Cooling & Exhaust

  • Standard air filter

Genset Control

  • GCCP 1.1

Governor

  • Adem A4

Alternator

  • A Frame standard alternator

Fuel Storage

  • Single wall 8 hour fuel tank

General

  • Engine and alternator pre-paint, Caterpillar yellow
  • DE350S GC, 60 Hz, 437.5 kVA, Spec Sheet
    application/pdf
    Download ↓
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
