Diesel generator sets

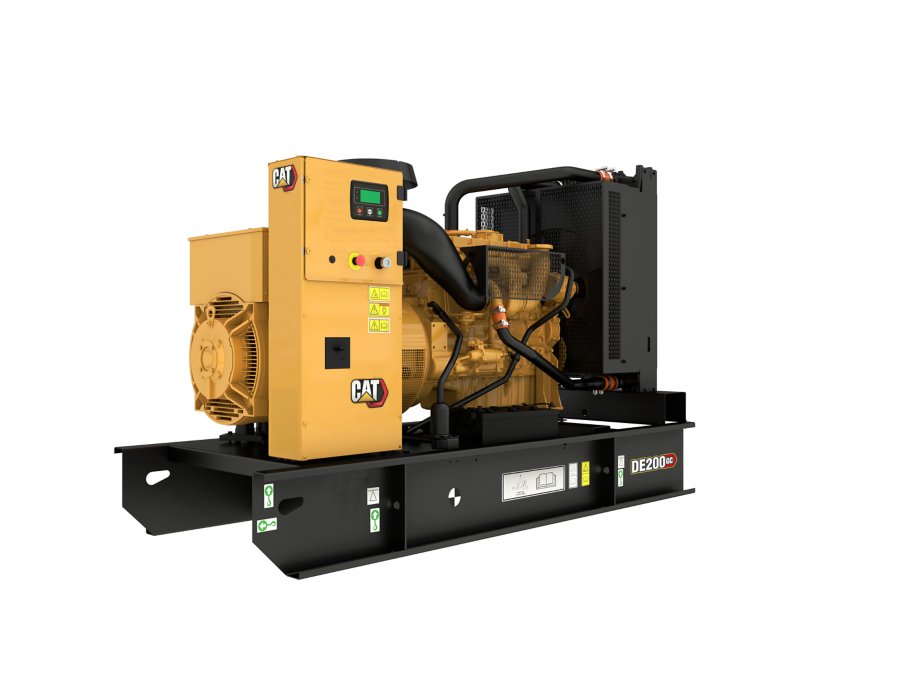

DE200 GC (50 Hz)
Producing reliable power of 200 kVA at 50 Hz, our DE200 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- Maximum Rating200 kVA
- Minimum Rating200 kVA
- Emissions/Fuel StrategyNon Regulated
- Voltage380 to 415 Volts
- Frequency50 Hz
- Duty CycleStandby
| Maximum Rating | 200 kVA |
|---|---|
| Minimum Rating | 200 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
| Engine Model | C7.1 I-6, 4-Cycle Diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5.3 in |
| Displacement | 427.8 in³ |
| Compression Ratio | 16.0:1 |
| Aspiration | Turbocharged Air To Air Charge Cooled |
| Fuel System | Inline |
| Governor Type | Mechanical |
| Length - Maximum | 130.9 in |
|---|---|
| Width - Maximum | 44.6 in |
| Height - Maximum | 65.6 in |
| Dry Weight - Genset (maximum) | 4257 lb |
Engine
- C7.1, Inline 6 cylinder, 4 stroke diesel
Control Panels
- GCCP 1.1
Enclosure
- Cat GC enclosure
Fuel Storage
- Single wall 8 hour fuel tank
Alternator
- A Frame standard alternator
Governor
- Mechanical governor
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE200 GC Spec Sheet
-
Download ↓DE33 to DE220 GC Enclosure Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
