Diesel generator sets

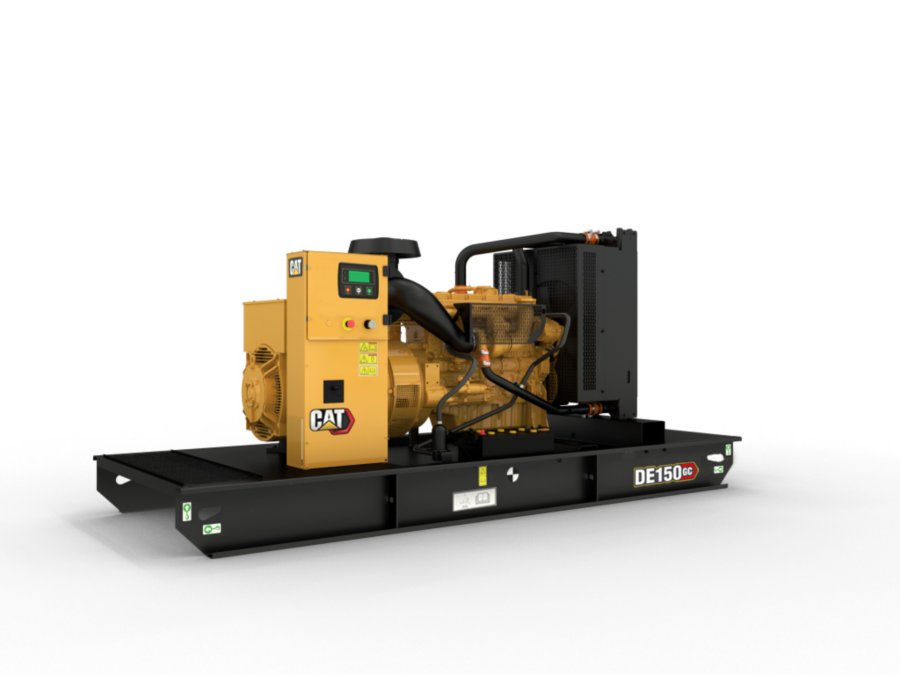

DE150 GC (50 Hz)

Producing reliable power of 150 kVA at 50 Hz, our DE150 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.

  • Maximum Rating150 kVA
  • Minimum Rating150 kVA
  • Emissions/Fuel StrategyNon Regulated
  • Voltage380 to 415 Volts
  • Frequency50 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 150 kVA
Minimum Rating 150 kVA
Emissions/Fuel Strategy Non Regulated
Voltage 380 to 415 Volts
Frequency 50 Hz
Speed 1500 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C7.1 I-6, 4-Cycle Diesel
Bore 4.1 in
Stroke 5.3 in
Displacement 427.8 in³
Compression Ratio 18.2:1
Aspiration Turbocharged
Fuel System Inline
Governor Type Mechanical
Generator Set Dimensions
Length - Maximum 130.9 in
Width - Maximum 44.6 in
Height - Maximum 65.6 in
Dry Weight - Genset (maximum) 4043 lb

Engine

  • C7.1, Inline 6 cylinder, 4 stroke diesel

Control Panels

  • GCCP 1.1

Enclosure

  • Cat GC enclosure

Governor

  • Mechanical governor

Fuel Storage

  • Single wall 8 hour fuel tank

Alternator

  • A Frame standard alternator

Air, Cooling & Exhaust

  • Enclosure silencer

General

  • Engine and alternator pre-paint, Caterpillar yellow
Need installed dimensions with enclosure and tank? See Model Configurations
