Diesel generator sets

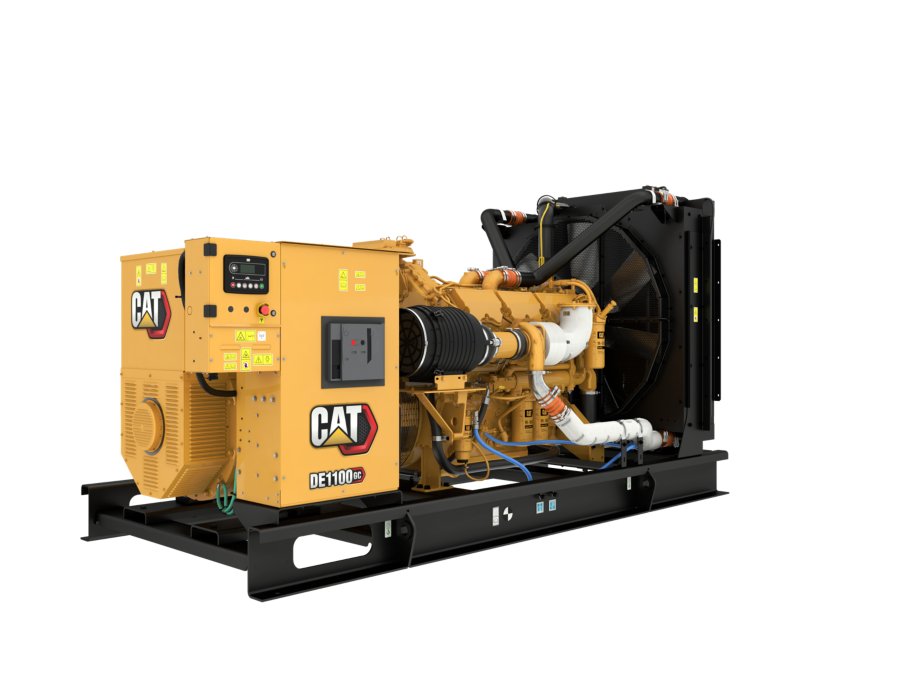

DE1100 GC
Producing reliable power at 1100 kVA, 50 Hz, our DE1100 GC diesel generator set is made to meet your needs in standby applications. We've designed each to ISO 8528-5 transient response requirements and to accept 100% rated load in one step. This generator set offers a low fuel consumption system.
- Maximum Rating1100 kVA
- Minimum Rating1100 kVA
- Emissions/Fuel StrategyLow Fuel Consumption
- Voltage400 - 415 Volts
- Frequency50 Hz
- Duty CycleStandby
| Maximum Rating | 1100 kVA |
|---|---|
| Minimum Rating | 1100 kVA |
| Emissions/Fuel Strategy | Low Fuel Consumption |
| Voltage | 400 - 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
| Engine Model | C32B TA, V-12, 4-Stroke Water-Cooled Diesel |
|---|---|
| Bore | 5.71 in |
| Stroke | 6.38 in |
| Displacement | 1958.86 in³ |
| Compression Ratio | 15.0:1 |
| Aspiration | TA |
| Fuel System | EUI |
| Governor Type | Adem™A4 |
| Length - Minimum | 164.3 in |
|---|---|
| Length - Maximum | 164.3 in |
| Width - Minimum | 73.1 in |
| Width - Maximum | 73.1 in |
| Height - Minimum | 87.3 in |
| Height - Maximum | 87.3 in |
| Dry Weight - Genset (minimum) | 14879 lb |
| Dry Weight - Genset (maximum) | 14879 lb |
Control Panel
- GCCP1.3
Cooling System
- Radiator
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE1100 GC, C32B, 50 Hz 1100 kVA, Optimised for Low Fuel Consumption Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
