Diesel generator sets

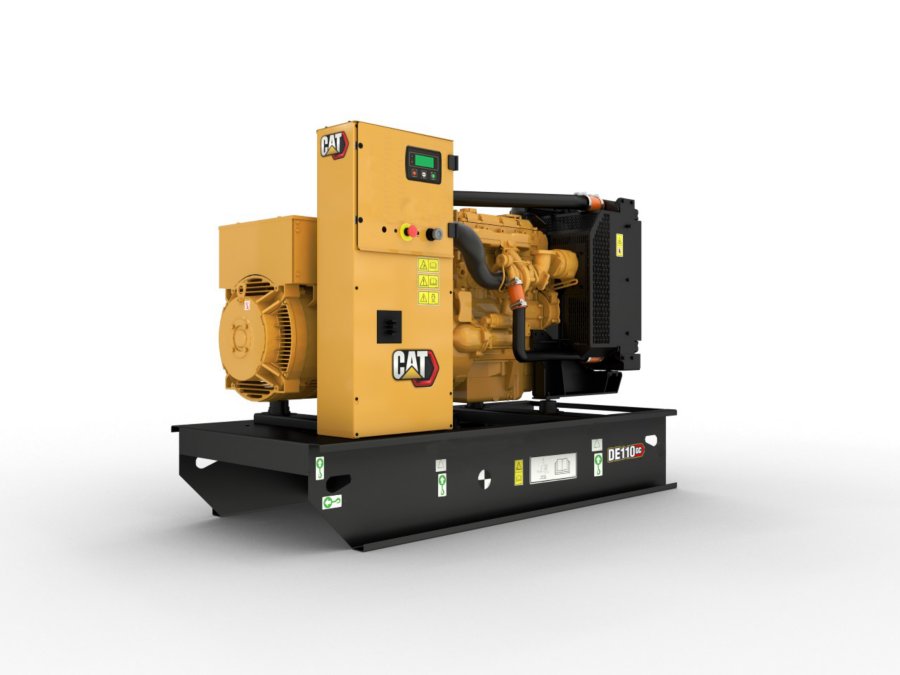

DE110 GC (50 Hz)
Producing 110 kVA of reliable power at 50 Hz, our DE110 GC diesel generator set is designed to ISO 8528-5 transient response requirements.
- Maximum Rating110 kVA
- Minimum Rating110 kVA
- Emissions/Fuel StrategyNon Regulated
- Voltage380 to 415 Volts
- Frequency50 Hz
- Duty CycleStandby
| Maximum Rating | 110 kVA |
|---|---|
| Minimum Rating | 110 kVA |
| Emissions/Fuel Strategy | Non Regulated |
| Voltage | 380 to 415 Volts |
| Frequency | 50 Hz |
| Speed | 1500 rpm |
| Duty Cycle | Standby |
| Engine Model | C4.4, In-line 4, 4-cycle diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5 in |
| Displacement | 268.5 in |
| Compression Ratio | 18.23:1 |
| Aspiration | Turbocharged Air To Air Charge Cooled |
| Fuel System | Inline |
| Governor Type | Mechanical |
| Length - Maximum | 108.1 in |
|---|---|
| Width - Maximum | 39.3 in |
| Height - Maximum | 58.1 in |
| Dry Weight - Genset (maximum) | 1330 lb |
Engine
- C4.4, Inline 4 cylinder, 4 stroke diesel
Genset Control
- GCCP 1.1
Governor
- Mechanical governor
Fuel Storage
- Single wall 8 hour fuel tank
Alternator
- A Frame standard alternator
Enclosure
- Cat GC enclosure
Air, Cooling & Exhaust
- Enclosure silencer
General
- Engine and alternator pre-paint, Caterpillar yellow
-
Download ↓Electric Power Ratings Guide
-
Download ↓DE110 GC Spec Sheet
Need installed dimensions with enclosure and tank? See Model Configurations
