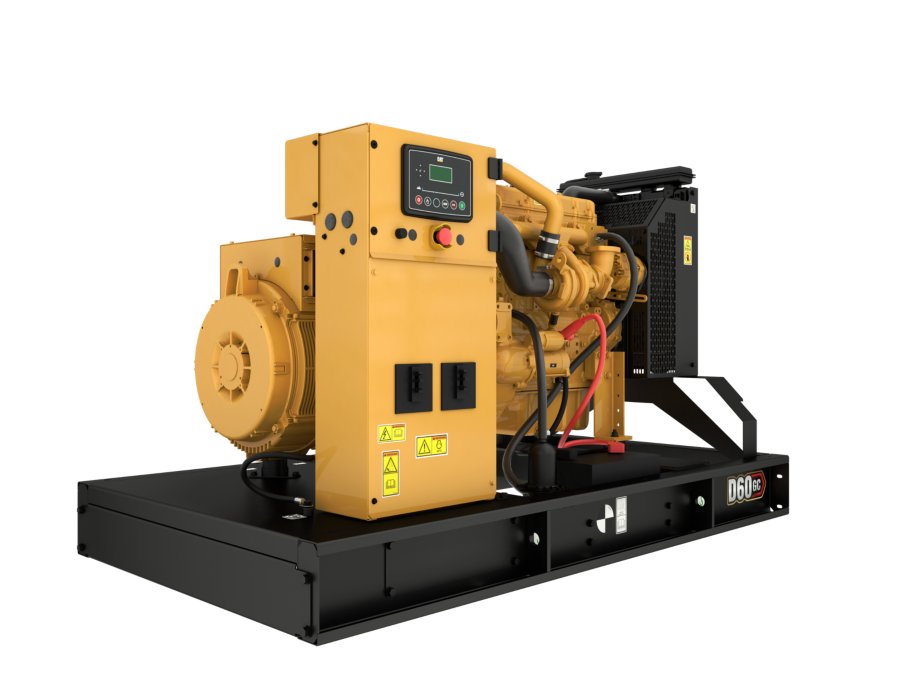

D60 GC Open Set
D60 GC Open Set
D60 GC Open Set
D60 GC Open Set
Enclosure
Enclosure
Diesel generator sets

D60 GC

Producing reliable power of 60 ekW at 60 Hz, our D60 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D60 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.

  • Maximum Rating60 ekW
  • Minimum Rating60 ekW
  • Emissions/Fuel StrategyU.S. EPA Cert., Tier 3
  • Voltage208 to 600 Volts
  • Frequency60 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 60 ekW
Minimum Rating 60 ekW
Emissions/Fuel Strategy U.S. EPA Cert., Tier 3
Voltage 208 to 600 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in
Stroke 5 in
Displacement 269 in
Compression Ratio 16.7:1
Aspiration Turbocharged
Fuel System Electronic (adjustable)
Governor Type Mechanical, ADEM™A4
Generator Set Dimensions
Length - Maximum 77.2 in
Width - Maximum 43.3 in
Height - Maximum 48 in
Dry Weight - Genset (maximum) 2054 lb

Certificates

  • IBC seismic and wind Certifications

Air Inlet System

  • Air cleaner
  • Cartridge type air filter

Circuit breakers

  • Breakers (100% UL rated)
  • 3-Pole 100% rated
  • Second circuit breaker box
  • Power terminal strip

Charging System

  • NFPA battery charger UL10A 120VAC

Control Panel

  • GCCP 1.2 Control panel

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel System

  • Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank

Control Panels

  • WSS1 Low coolant level shut down
  • FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
  • NFPA110 bundle includes:
  • WCA1 Low coolant temperature alarm
  • A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
  • PBC10NU NFPA battery charger
  • Oil temperature gauge and sender
  • PAA1 Panel mounted audible alarm
  • Ground fault relay
  • Remote E-stop button
  • Remote annunciator module
  • Audible alarm
  • Volt free contacts genset run and common alarm
  • Discrete I/O module
  • Overload shutdown via breaker
  • Low coolant temperature alarm
  • Protective devices:
  • Fuel level reading
  • Low coolant level shutdown

Cooling System

  • Coolant drain line with valve
  • Fan drive, battery charging alternator drive
  • Caterpillar extended life coolant
  • Radiator and cooling fan with guards
  • Radiator stone guard

Generator

  • 12 Leads

Governing System

  • Mechanical and electrical governing system - model dependent

Lube System

  • Oil drain line with valve
  • Lubricating oil

General

  • Engine and alternator pre-paint, Caterpillar yellow

Starting/Charging System

  • Batteries
  • 24V battery with rack and cables
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
  • D60 GC, D4.4, 60 Hz 60 ekW, EPA Tier III Compliant Emissions Spec Sheet
    application/pdf
    Download ↓
  • GCCP 1.2 Control Panel Data Sheet
    application/pdf
    Download ↓
  • GCCP 1.5 Control Panel Data Sheet
    application/pdf
    Download ↓
  • Cat® GC Generator Set Brochure for North America
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
