Diesel generator sets

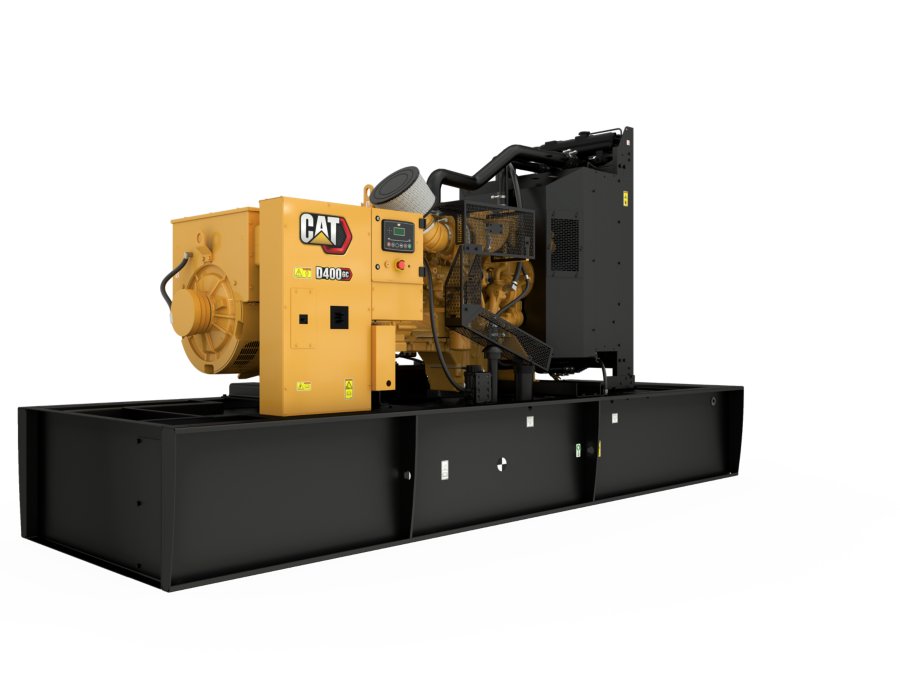

D400 GC
The D400 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 400 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D400 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
- Maximum Rating400 ekW
- Minimum Rating400 ekW
- Emissions/Fuel StrategyEPA Stationary Emergency
- Voltage480 to 600 Volts
- Frequency60 Hz
- Duty CycleStandby
| Maximum Rating | 400 ekW |
|---|---|
| Minimum Rating | 400 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 480 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel |
|---|---|
| Bore | 5.1 in |
| Stroke | 6.2 in |
| Displacement | 763 in³ |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | ADEM™A4 |
| Length - Maximum | 182.8 in |
|---|---|
| Width - Maximum | 64.2 in |
| Height - Minimum | 80.3 in |
| Height - Maximum | 96.7 in |
| Dry Weight - Genset (minimum) | 7330.4 lb |
| Dry Weight - Genset (maximum) | 4107 lb |
Air Inlet System
- Air cleaner - Non canister, disposable
- Aftercooler core
- Turbocharger
Control Panel
- GCCP 1.2
Cooling System
- Blower fan and fan drive with guards
- Coolant drain valve
- Radiator sight gauge
- Radiator, package mounted
- Jacket water pump, gear driven, centrifugal
- Thermostats and housing
Exhaust System
- Exhaust manifold - dry
Fuel System
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Engine fuel transfer pump
- Fuel cooler
- Fuel priming pump
- Integral tank base, 24 hours, UL142
Generator Set
- All protective devices and control functions simulated and checked
- Complete system designed & built at ISO 9001:2000 certified facilities
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- Insulation system, Class H
- IP23 Protection
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- 6 Leads
- Terminal box, IP22 RHS facing, bottom cable entry
- Easy access to AVR and terminals
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
- Voltage regulator (single phase sensing)
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Fumes disposal to front of radiator
- Lubricating oil, CK-4 (10W-30)
- Oil cooler
- Shallow oil pan
- Oil filler and dipstick
- Oil filter, spin on
- Oil drain with valve
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff - Low oil pressure
- Safety shutoff - High water temperature
- Safety shutoff - Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Lifting eyes
- Vibration damper
- Parts book
-
Download ↓Electric Power Ratings Guide
-
Download ↓D400 GC, C13, 60 Hz 400 ekW Spec Sheet
-
Download ↓D250 -D600 GC Enclosure Brochure
-
Download ↓GCCP 1.2 Control Panel Data Sheet
-
Download ↓GCCP 1.5 Control Panel Data Sheet
-
Download ↓Cat® GC Generator Set Brochure for North America
Need installed dimensions with enclosure and tank? See Model Configurations
