Diesel generator sets

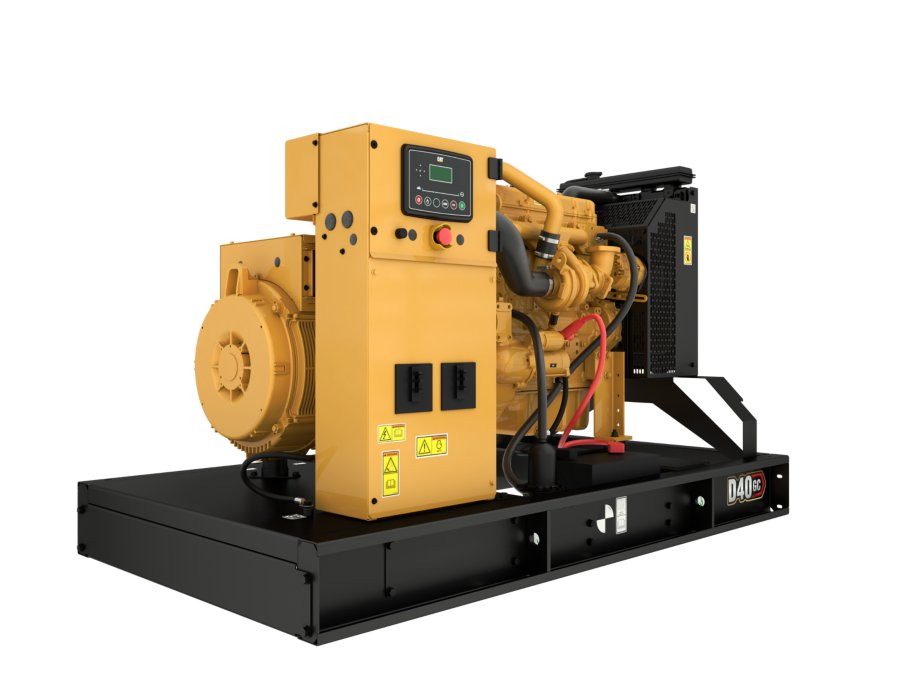

D40 GC

Producing reliable power of 40 ekW at 60 Hz, our D40 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D40 GC generator sets meet EPA Stationary Emergency (Tier 3) emissions standards.

  • Maximum Rating40 ekW
  • Minimum Rating40 ekW
  • Emissions/Fuel StrategyU.S. EPA Cert., Tier 3, SCAQMD Compliant
  • Voltage208 to 600 Volts
  • Frequency60 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 40 ekW
Minimum Rating 40 ekW
Emissions/Fuel Strategy U.S. EPA Cert., Tier 3, SCAQMD Compliant
Voltage 208 to 600 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C4.4, In-line 4, 4-cycle diesel
Bore 4.1 in
Stroke 5 in
Displacement 269 in
Compression Ratio 18.2:1
Aspiration Turbocharged
Fuel System Common Rail
Governor Type Mechanical, ADEM™A4
Generator Set Dimensions
Length - Maximum 77.2 in
Width - Maximum 43.3 in
Height - Maximum 48 in
Dry Weight - Genset (maximum) 1847 lb

Certificates

  • IBC seismic and wind Certifications

Air Inlet System

  • Air cleaner
  • Cartridge type air filter

Circuit breakers

  • Breakers (100% UL rated)
  • Second circuit breaker box
  • 3-Pole 100% rated
  • Power terminal strip

Charging System

  • NFPA battery charger UL10A 120VAC

Control Panel

  • GCCP 1.2 Control panel

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel System

  • Standard open set fuel tank/base supplied base, formed steel with single wall integral 24-hour fuel tank

Control Panels

  • NFPA110 bundle includes:
  • WSS1 Low coolant level shut down
  • WCA1 Low coolant temperature alarm
  • FSS Low fuel level alarm & indication panel circuitry required when sub-base tank is selected
  • PBC10NU NFPA battery charger
  • Oil temperature gauge and sender
  • A Coolant heater, remote annunciator or 0.8 power factor test may be required depending on the application
  • PAA1 Panel mounted audible alarm
  • Remote E-stop button
  • Volt free contacts genset run and common alarm
  • Discrete I/O module
  • Audible alarm
  • Ground fault relay
  • Remote annunciator module
  • Overload shutdown via breaker
  • Low coolant level shutdown
  • Fuel level reading
  • Protective devices:
  • Low coolant temperature alarm

Cooling System

  • Caterpillar extended life coolant
  • Radiator and cooling fan with guards
  • Coolant drain line with valve
  • Fan drive, battery charging alternator drive
  • Radiator stone guard

Generator

  • 12 Leads

Governing System

  • Mechanical and electrical governing system - model dependent

Lube System

  • Lubricating oil
  • Oil drain line with valve

General

  • Engine and alternator pre-paint, Caterpillar yellow

Starting/Charging System

  • Batteries
  • 24V battery with rack and cables
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
  • D40 GC, C4.4, 60 Hz 40 ekW, EPA Tier III Compliant Emissions Spec Sheet
    application/pdf
    Download ↓
  • D40 GC 60 Hz 40 ekW, SCAQMD Complaint (Tier 3 Nonroad Equivalent Emission Standard)
    application/pdf
    Download ↓
  • GCCP 1.2 Control Panel Data Sheet
    application/pdf
    Download ↓
  • GCCP 1.5 Control Panel Data Sheet
    application/pdf
    Download ↓
  • Cat® GC Generator Set Brochure for North America
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
