Diesel generator sets

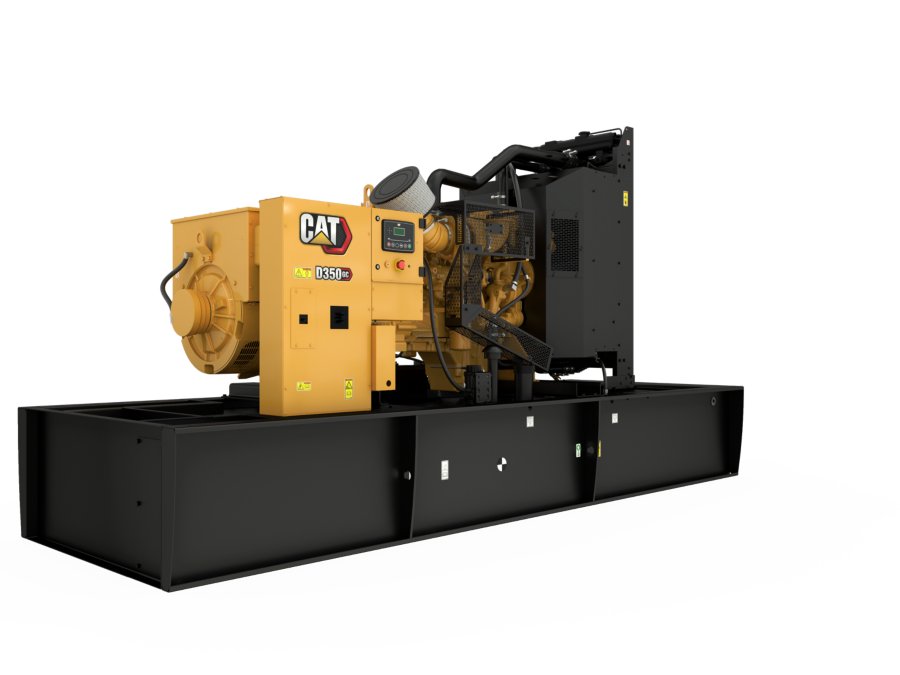

D350 GC
The D350 GC diesel generator sets have been developed to meet your needs in standby applications. Producing reliable power of 350 ekW at 60 Hz, each generator set has been designed to meet ISO 8528-5 transient response requirements and built to accept 100 % rated load in one step. Our D350 GC generator sets are engineered to EPA Stationary Emergency (Tier 3) emissions standards.
- Maximum Rating350 ekW
- Minimum Rating350 ekW
- Emissions/Fuel StrategyEPA Stationary Emergency
- Voltage480 to 600 Volts
- Frequency60 Hz
- Duty CycleStandby
| Maximum Rating | 350 ekW |
|---|---|
| Minimum Rating | 350 ekW |
| Emissions/Fuel Strategy | EPA Stationary Emergency |
| Voltage | 480 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Model | Cat® C13 In-line 6, 4-cycle diesel |
|---|---|
| Bore | 5.1 in |
| Stroke | 6.2 in |
| Displacement | 763 in³ |
| Compression Ratio | 16.3:1 |
| Aspiration | Turbocharged Air-to-Air Aftercooled |
| Fuel System | MEUI |
| Governor Type | ADEM™A4 |
| Length - Maximum | 182.8 in |
|---|---|
| Width - Maximum | 64.2 in |
| Height - Minimum | 80.3 in |
| Height - Maximum | 96.7 in |
| Dry Weight - Genset (minimum) | 6929.1 lb |
| Dry Weight - Genset (maximum) | 7255.4 lb |
Air Inlet System
- Turbocharger
- Aftercooler core
- Air cleaner - Non canister, disposable
Control Panel
- GCCP 1.2
Cooling System
- Radiator sight gauge
- Blower fan and fan drive with guards
- Radiator, package mounted
- Coolant drain valve
- Thermostats and housing
- Jacket water pump, gear driven, centrifugal
Exhaust System
- Exhaust manifold - dry
Fuel System
- Integral tank base, 24 hours, UL142
- Engine fuel transfer pump
- Primary fuel filter w/integral water separator and secondary filter, spin on
- Fuel cooler
- Fuel priming pump
Generator Set
- Complete system designed & built at ISO 9001:2000 certified facilities
- All protective devices and control functions simulated and checked
- Factory tested to design specifications at full load conditions
Generators and Generator Attachments
- 6 Leads
- Brushless, self-excited 2/3 pitch (600V uses Internal excitation (IE))
- Terminal box, IP22 RHS facing, bottom cable entry
- Standard winding protection for non-harsh environments with relative humidity ? 95%
- IP23 Protection
- Voltage regulator (single phase sensing)
- Easy access to AVR and terminals
- Insulation system, Class H
Governing System
- Cat electronic governor (ADEM A4)
Lube System
- Oil drain with valve
- Lubricating oil, CK-4 (10W-30)
- Oil filter, spin on
- Oil cooler
- Oil filler and dipstick
- Fumes disposal to front of radiator
- Shallow oil pan
Mounting System
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provisions and termination points for coolant and lube oil drain lines
Protection
- Safety shutoff - High water temperature
- Safety shutoff - Low oil pressure
- Safety shutoff - Overspeed
Starting/Charging System
- 24-volt electric starting motor
- 24V, 45 Amp Charging alternator
General
- Vibration damper
- Parts book
- Lifting eyes
-
