D175 GC Open Set
D175 GC Open Set
D175 GC Open Set
D175 GC Open Set
Enclosure
Enclosure
Diesel generator sets

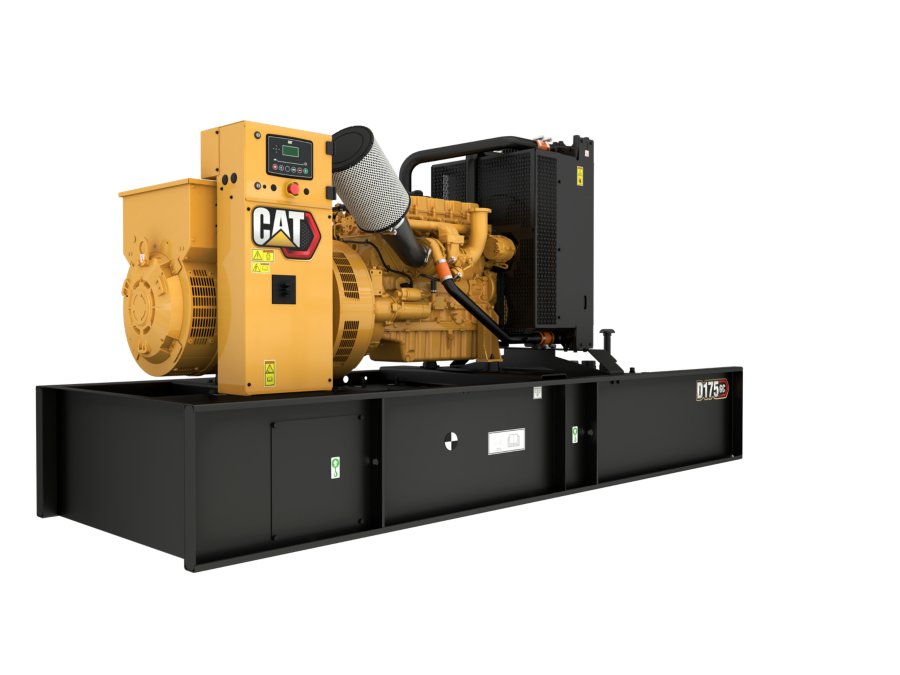

D175 GC (60 Hz)

Producing reliable power of 175 ekW at 60 Hz, our D175 GC diesel generator sets designed to ISO 8528-5 transient response requirements. All D175 GC generator sets are available with a choice of emissions levels.

  • Maximum Rating175 ekW
  • Minimum Rating175 ekW
  • Emissions/Fuel StrategyU.S. EPA Cert., Tier 3
  • Voltage208 to 600 Volts
  • Frequency60 Hz
  • Duty CycleStandby
Have questions about this product?
Request a Quote
800.768.4200
Generator Set Specifications
Maximum Rating 175 ekW
Minimum Rating 175 ekW
Emissions/Fuel Strategy U.S. EPA Cert., Tier 3
Voltage 208 to 600 Volts
Frequency 60 Hz
Speed 1800 rpm
Duty Cycle Standby
Engine Specifications
Engine Model C7.1 I-6, 4-Cycle Diesel
Bore 4.1 in
Stroke 5.31 in
Displacement 427.8 in³
Compression Ratio 16.7:1
Aspiration Turbocharged, Air to Air Aftercooled
Fuel System Electronic, Common Rail
Governor Type ADEM™A4
Generator Set Dimensions
Length - Maximum 103.7 in
Width - Maximum 51.2 in
Height - Maximum 58.7 in
Dry Weight - Genset (maximum) 3741 lb

Air Inlet System

  • Air cleaner; light duty with disposable element

Control Panels

  • GCCP 1.2 Control panel

Cooling System

  • Coolant drain line with valves
  • Fan drive, battery charging alternator drive
  • Caterpillar extended life coolant
  • Radiator and cooling fan with guards

Generator and Generator Attachments

  • Tower panel, IP22, bottom cable entry
  • IP23 Protection
  • 12 Leads
  • Circuit breaker, IEC, 3 pole, mounted in tower panel
  • Segregated low voltage (AC/DC) wiring panel
  • Voltage regulator (single phase sensing)

Exhaust System

  • Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose

Fuel System

  • Base, formed steel with single wall integral 24-hour fuel tank
  • Standard open set fuel tank/base supplied

Lube System

  • Lubricating oil
  • Oil drain line with valve

Mounting System

  • Termination points for coolant and lube oil drain lines
  • Includes lifting provision and drag points
  • Captive linear vibration isolators between base and engine-generator

Starting / Charging System

  • 24V battery with rack and cables

Governing System

  • Mechanical and electrical governing system - model dependent

General

  • Engine and alternator pre-paint, Caterpillar yellow
  • Electric Power Ratings Guide
    application/pdf
    Download ↓
  • D175 GC, C7.1, 60 Hz, 175 ekW, EPA Tier III Compliant Spec Sheet
    application/pdf
    Download ↓
  • GCCP 1.2 Control Panel Data Sheet
    application/pdf
    Download ↓
  • GCCP 1.5 Control Panel Data Sheet
    application/pdf
    Download ↓
Need installed dimensions with enclosure and tank? See Model Configurations
