Diesel generator sets

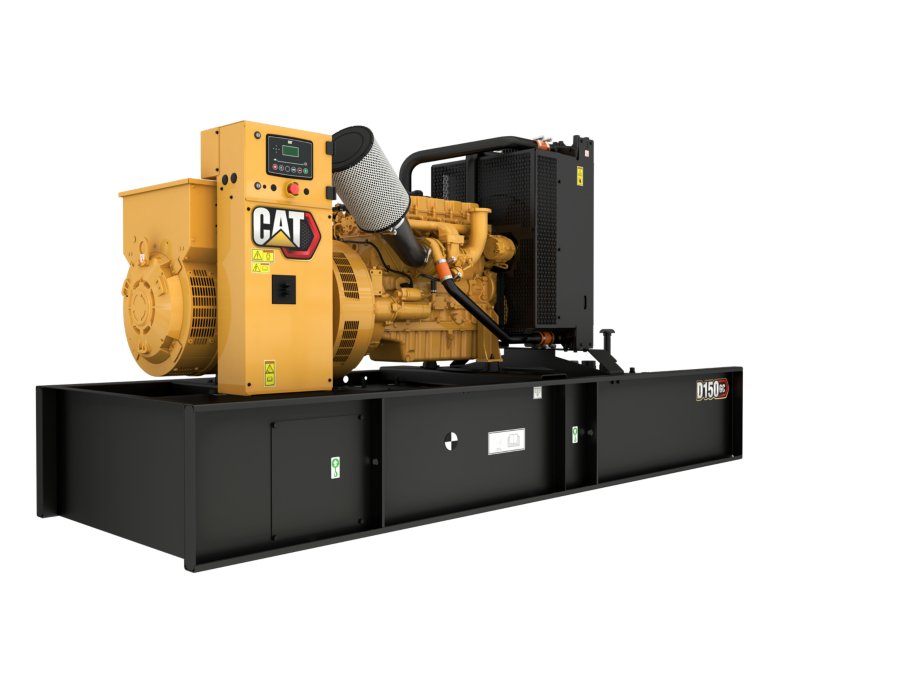

D150 GC
Producing reliable power of 150 ekW at 60 Hz, our D150 GC diesel generator set is designed to meet ISO 8528-5 transient response requirements.
- Maximum Rating150 ekW
- Minimum Rating150 ekW
- Emissions/Fuel StrategyU.S. EPA Cert., Tier 3
- Voltage208 to 600 Volts
- Frequency60 Hz
- Duty CycleStandby
| Maximum Rating | 150 ekW |
|---|---|
| Minimum Rating | 150 ekW |
| Emissions/Fuel Strategy | U.S. EPA Cert., Tier 3 |
| Voltage | 208 to 600 Volts |
| Frequency | 60 Hz |
| Speed | 1800 rpm |
| Duty Cycle | Standby |
| Engine Model | C7.1 I-6, 4-Cycle Diesel |
|---|---|
| Bore | 4.1 in |
| Stroke | 5.31 in |
| Displacement | 428 in³ |
| Compression Ratio | 16.7:1 |
| Aspiration | Turbocharged, Air to Air Aftercooled |
| Fuel System | Electronic, Common Rail |
| Governor Type | ADEM™A4 |
| Length - Maximum | 103.7 in |
|---|---|
| Width - Maximum | 51.2 in |
| Height - Maximum | 52.2 in |
| Dry Weight - Genset (maximum) | 3443 lb |
Air Inlet System
- Air cleaner; light duty with disposable element
Control Panels
- GCCP 1.2 Control panel
Cooling System
- Fan drive, battery charging alternator drive
- Radiator and cooling fan with guards
- Coolant drain line with valves
- Caterpillar extended life coolant
Generator and Generator Attachments
- 12 Leads
- Segregated low voltage (AC/DC) wiring panel
- IP23 Protection
- Tower panel, IP22, bottom cable entry
- Voltage regulator (single phase sensing)
- Circuit breaker, IEC, 3 pole, mounted in tower panel
Exhaust System
- Stub pipe, gaskets, raincap and SAE exhaust flange for customer use - shipped loose
Fuel System
- Standard open set fuel tank/base supplied
- Base, formed steel with single wall integral 24-hour fuel tank
Lube System
- Lubricating oil
- Oil drain line with valve
Mounting System
- Termination points for coolant and lube oil drain lines
- Captive linear vibration isolators between base and engine-generator
- Includes lifting provision and drag points
Starting / Charging System
- 24V battery with rack and cables
Governing System
- Mechanical and electrical governing system - model dependent
General
- Engine and alternator pre-paint, Caterpillar yellow
-
