Gas generator sets

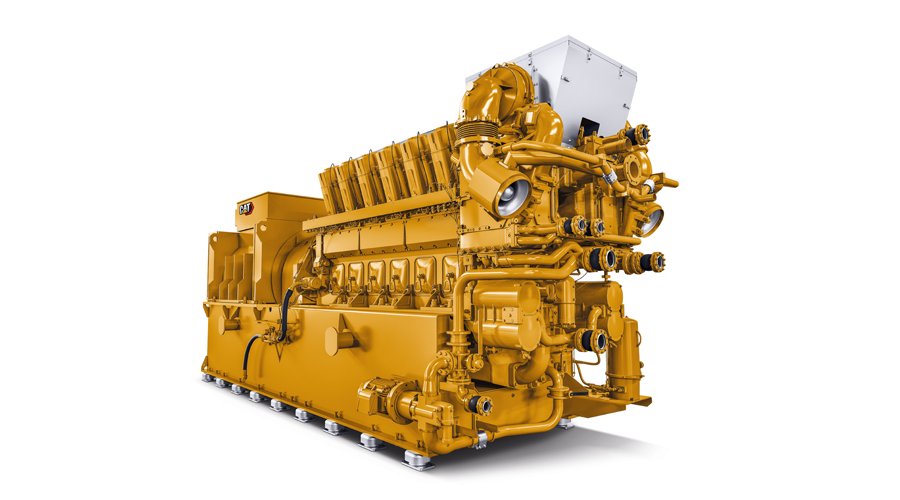

CG260-12
From natural gas-fueled combined heat and power (CHP) systems and emergency power for facilities, to renewable biogas energy to support the local grid, or electricity generated from coal mine gases, Caterpillar has a wide range of reliable gas power solutions.
- Frequency50Hz / 60 Hz
| Continuous Rating | 3333 / 3000 ekW @1.0pf |
|---|---|
| Fuel Type | Natural Gas, Coal Gas, Hydrogen Blend (up to 25%) |
| Maximum Electrical Efficiency | 43.90% |
| Frequency | 50Hz / 60 Hz |
| RPM | 1000 / 900 rpm |
| Engine Model | CG260-12 |
|---|---|
| Displacement | 12443 in³ |
| Aspiration | TA |
| Bore | 10.2 in |
| Stroke | 12.6 in |
| Length | 315 in |
|---|---|
| Width | 105 in |
| Height | 110 in |
| Dry Weight - Genset | 89617 lb |
Air Inlet
- One-element single-stage air cleaner with enclosure and sevice indicator
- Turbocharger with a water-cooled bearing case for all cylinder
Control Panels
- TEM (Total Electronic Management)
Cooling
- flange connections for JW inlet and outlet
- Jacket water and SCAC thermostats
- Electrical jacket water and aftercooler coolant pump
Exhaust
- Exhaust waste gate for the CG260-12
- Closed crankcase ventilation system
Fuel system
- Independently controlled cylinder monitoring and ignition system
- Electronic fuel metering valve
- Pre-chamber spark plugs
Generator
- Busbar connections
- Closed-coupled generator result in no torque transmission to the base frame
- Anti-condensation space heater
- Reactive droop
- 3-phase sensing and KVAR/PF control
- Grid code generator
- Winding temperature detectors
Starting/Charging
- Compressed air engine start
General
- Crankshaft vibration damper and guard
-
